027H5037

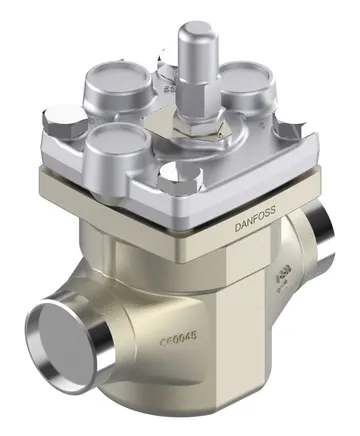

Danfoss 027H5037 - Pilot operated servo valve, ICS3E 50, 50 mm, Butt weld
- Inlet connection type: Butt weld
- Connection standard: EN 10220
- Inlet connection size [mm]: 50
- Kv value [m³/h]: 44
Product details
| Type | ICS3E 50 | |
| Product group | Press. and temp. regul. valves | |
| Product Name Description | Pilot operated servo valve | |
| Approval | CE; EAC; UA | |
| CE mark | Yes | |
| China RoHS compliance | Yes | |
| China RoHS exemption clause | No | |
| Connection standard | EN 10220 | |
| Contains batteries | No | |
| Cv value [gal/min] | 51.04 gal/min | |
| Direction | Straightway | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Fluid Group | 1 | |
| Inlet connection size [in] | 2 in | |
| Inlet connection size [mm] | 50 | |
| Inlet connection type | Butt weld | |
| Kv value [m³/h] | 44 | |
| Max. Working Pressure [bar] | 65 bar | |
| Max. Working Pressure [psig] | 943 psig | |
| Outlet connection size [in] | 2 in | |
| Outlet connection size [mm] | 50 mm | |
| Outlet connection type | Butt weld | |
| Packing format | Single pack | |
| PED category | II | |
| Product description | Servo operated valve | |
| Quantity per packing format | 1 pc | |
| REACH Candidate List substances | No | |
| Refrigerants | R1270; R170; R290; R600; R600a; RE170 | |
| Temperature range [°C] [max] | 120 °C | |
| Temperature range [°C] [min] | -40 °C | |
| Temperature range [°F] [max] | 248 °F | |
| Temperature range [°F] [min] | -40 °F | |
| Top cover | 3 function modules | |
| Valve version | Special version, ATEX |
Technical data
| Product type | Press. and temp. regul. valves | |
| Net weight | 10.062 kg | |
| Gross weight | 11.178 kg | |
| Packed volume | 20.7 L | |
| EAN | 5702428302753 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 027H5037 are available on request. Ask for documents →
