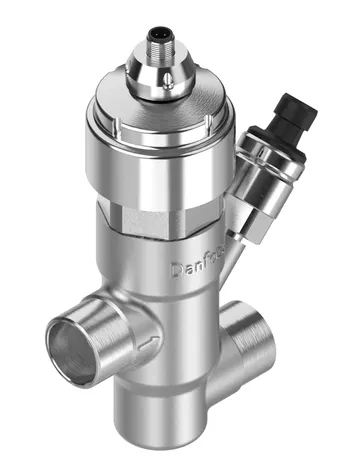

Danfoss 027H7231 - Electric regulating valve, CCMT 16, 1 1/8 in

Product details

Type		CCMT 16
Product group		Press. and temp. regul. valves
Product Name Description		Electric regulating valve
Ambient temperature range [°C] [max]		60 °C
Ambient temperature range [°C] [min]		-40 °C
Ambient temperature range [°F] [max]		140 °F
Ambient temperature range [°F] [min]		-40 °F
Approval		cURus; UA
China RoHS compliance		Out of scope
Connection Code		(2501:D26:25); (3002:X:29)
Connection Solder size [in]		1 1/8 in
Connection standard		EN10220
Connection type		Solder, ODF
Connection Weld size [in]		1 in
Contains batteries		No
Cv value [gal/min]		1.882 gal/min
Diff.press.setting range [bar]		90 bar
Diff.press.setting range [psi]		1305 psi
EU RoHS compliance		Out of scope
Kv value [m³/h]		1.6
Max. Working Pressure [bar]		140
Max. Working Pressure [psig]		2030 psig
MaxOPD [bar]		90 bar
MaxOPD [psig]		1305 psig
Packing format		Single pack
Product accessories		Electric valve accessories
Product description		Electric Expansion Valve
Quantity per packing format		1
REACH Candidate List substances		Lead (CAS no. 7439-92-1)
Refrigerants		R744; R410A; R134a
SCIP dossier product name		CCMT
Serviceable		Electric valve spare parts
Temperature range [°C] [max]		60 °C
Temperature range [°C] [min]		-40 °C
Temperature range [°F] [max]		140 °F
Temperature range [°F] [min]		-40 °F
UL approved refrigerants		R134a; R744
UL mark		Yes
