027L4572

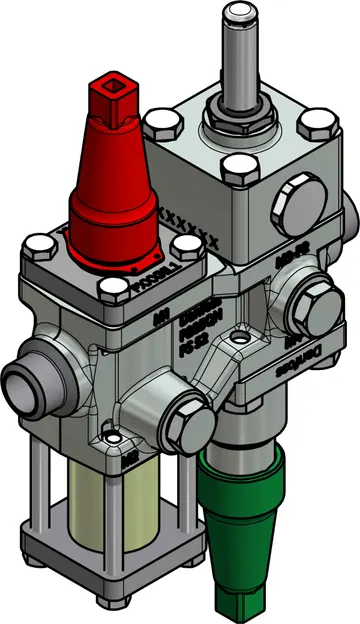

Danfoss 027L4572 - Valve station, ICF 15-4-18H, 20 mm
- Connection size [mm]: 20
- Connection type: Butt weld
- Body material: Steel
- Surface coating: Zn (TLP)
- Max. Working Pressure [bar]: 52
- Temperature range [°C]: -60 - 120
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | ICF 15-4-18H | |
| Product group | Multifunction valves | |
| Product Name Description | Valve station | |
| Approval | EAC; UL; UA | |
| Body material | Steel | |
| China RoHS compliance | Yes with exemptions | |
| China RoHS exemption clause | 7.1; 7.2 | |
| Connection material | Steel | |
| Connection size [in] | 3/4 in | |
| Connection size [mm] | 20 | |
| Connection standard | ASME B 36.10M SCHEDULE 80 | |
| Connection type | Butt weld | |
| Contains batteries | No | |
| Direction | Straightway | |
| Equipment | Cap | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(a); 6(b) | |
| Flow direction indicator | Embossed 1-way arrow | |
| Fluid Group | 1 | |
| Max. Working Pressure [bar] | 52 | |
| Max. Working Pressure [psig] | 450 psig | |
| Module 1 | Stop valve | |
| Module 1 type | ICFS 15 | |
| Module 2 | Filter | |
| Module 2 type | ICFF 15 | |
| Module 3 | Solenoid valve | |
| Module 3 type | ICFE20H | |
| Module 4 | Stop/check valve | |
| Module 4 type | ICFN20 | |
| Packing format | Single pack | |
| PED category | Art. 4, par. 3 | |
| Product accessories | ICF accessories | |
| Product description | Control Solution | |
| Quantity per packing format | 1 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R134a; R22; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R409A; R410A; R421A; R502; R717; R744; R507A; R1234yf; R1234ze(E); R125; R227ea; R236fa; R245fa; R32; R407H; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R513A; R513B; R515A; R515B; R516A | |
| SCIP dossier product name | ICF | |
| Serviceable | ICF spare parts | |
| Side port placement | P1-P2 | |
| Side port quantity [pc] | 2 pc | |
| Surface coating | Zn (TLP) | |
| Temperature range [°C] [max] | 120 °C | |
| Temperature range [°C] [min] | -60 °C | |
| Temperature range [°F] [max] | 248 °F | |
| Temperature range [°F] [min] | -76 °F | |
| Type code ICF | ICF-15-4-20ASYFYEHNXXXXX2IXX | |
| UL approval file name | REFRIGERANT VALVE 53R0 | |
| UL mark | Yes | |
| Temperature range [°C] | -60 - 120 |
Technical data
| Product type | Multifunction valves | |
| Net weight | 7.48 kg | |
| Gross weight | 7.73 kg | |
| Packed volume | 12 L | |
| EAN | 5702428949316 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 027L4572 are available on request. Ask for documents →
