032H8017

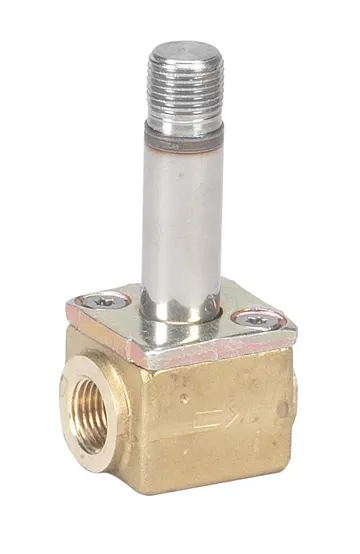

Danfoss 032H8017 - Solenoid valve, EV210A
- Media recommendations: Oil,Comp.Air,Vacuum
- Body material: Brass
- Operation: Direct-operated
- Number of ways: 2/2
Type:
EV210A 3
EV210A 3
Product details
| Type | EV210A | |
| Product group | Solenoid valves | |
| Product Name Description | Solenoid valve | |
| Actuator | A | |
| Actuator size | 9 mm | |
| Actuator size [in] | 0.35 in | |
| Actuator system [mm] | 9 mm | |
| Ambient temperature max. [°C] | 50 °C | |
| Ambient temperature max. [°F] | 122 °F | |
| Application | Closed and Drain | |
| Body material | Brass | |
| China RoHS compliance | Yes with exemptions | |
| China RoHS exemption clause | 7.3 | |
| Connection Internal/External | Internal | |
| Connection material | Brass | |
| Connection size [in] | 1/4 | |
| Connection standard | ISO 228-1 | |
| Connection type | G | |
| Contains batteries | No | |
| Cv value [gal/min] | 0.26 gal/min | |
| Differential pressure [bar] [max] | 14 bar | |
| Differential pressure [bar] [min] | 0 bar | |
| Differential pressure [psi] [max] | 203 psi | |
| Differential pressure [psi] [min] | 0 psi | |
| EEE category | 5 small equipment (any external dimension < 50 cm) | |
| Est. time to close, water [ms] | 10 ms | |
| Est. time to open, water [ms] | 10 ms | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Flow direction | Single-flow | |
| Flow direction indicator | Engraved 1-way arrow | |
| Fluid Group | 1 | |
| Function | NC | |
| In scope of WEEE | Yes | |
| Kv value [m³/h] | 0.22 m³/h | |
| Max media viscosity [cSt] | 20 cSt | |
| Max. test pressure [bar] | 21 bar | |
| Max. test pressure [psig] | 304.5 psig | |
| Max. Working Pressure [bar] | 14 bar | |
| Max. Working Pressure [psig] | 203 psig | |
| Media recommendations | Oil,Comp.Air,Vacuum | |
| Media tolerance comments | Neutral media | |
| Medium temperature range [°C] [max] | 100 °C | |
| Medium temperature range [°C] [min] | -10 °C | |
| Medium temperature range [°F] [max] | 212 °F | |
| Medium temperature range [°F] [min] | 14 °F | |
| Number of ways | 2/2 | |
| Operation | Direct-operated | |
| Orifice size [mm] | 3 mm | |
| Orifice size fraction [in] | 1/8 in | |
| Packing format | Multi pack | |
| Parts Program name | EV210A | |
| Product accessories | Solenoid valve accessories | |
| Quantity per packing format | 16 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| SCIP dossier product name | EV210A B - solenoid valve | |
| Seal Material | FKM | |
| Serviceable | Solenoid valve spare parts | |
| Specification key | EV210A 3B G 14F NC000 | |
| Type designation | EV210A 3 |
Technical data
| Product type | Solenoid valves | |
| Net weight | 0.12 kg | |
| Gross weight | 0.12 kg | |
| Packed volume | 0.1 L | |
| EAN | 5702423050345 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 032H8017 are available on request. Ask for documents →
