032L3268

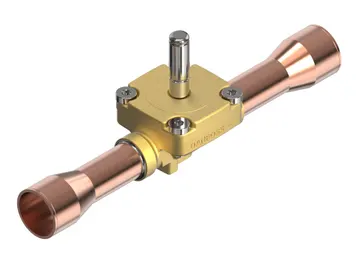

Danfoss 032L3268 - Solenoid valve, EVR 22, Solder, ODF, 1 3/8 in, 6 m³/h
- Body material: Brass
- Medium temperature range [°C]: -40 - 105
- Max. Working Pressure [bar]: 45.2
- Manual operation option: No
- Packing format: Multi pack
- Quantity per packing format: 4
Type:
Solenoid valve, Solder
Solenoid valve, Solder
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
Product details
| Type | EVR 22 | |
| Product group | Solenoid valves | |
| Product Name Description | Solenoid valve | |
| Actuator system [mm] | 13.5 mm | |
| Ambient temperature | -40 - 80 °C | |
| Approval | EAC; UL; UA | |
| Body material | Brass | |
| China RoHS compliance | Yes with exemptions | |
| China RoHS exemption clause | 7.1; 7.3 | |
| Coil | No | |
| Connection Code | (3002:X:35) | |
| Contains batteries | No | |
| Cv value [gal/min] | 6.9 gal/min | |
| Direction | Straightway | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(a); 6(c) | |
| Fluid Group | 2 | |
| Function | NO | |
| Inlet connection type | Solder, ODF | |
| Inlet size [in] | 1 3/8 in | |
| Kv value [m³/h] | 6 m³/h | |
| Lubricants compatibility | AB; MO; PAG; PAO; POE; PVE | |
| Manual operation option | No | |
| Max. Working Pressure [bar] | 45.2 | |
| Max. Working Pressure [psig] | 655 psig | |
| MaxOPD[bar] 10W AC | 21 bar | |
| MaxOPD[bar] 20W DC | 21 bar | |
| MaxOPD[bar] coil BJ/BX | 21 bar | |
| MaxOPD[psi] 10W AC | 305 psi | |
| MaxOPD[psi] 20W DC | 305 psi | |
| MaxOPD[psi] coil BJ/BX | 305 psi | |
| Medium temperature range [°C] [max] | 105 °C | |
| Medium temperature range [°C] [min] | -40 °C | |
| Medium temperature range [°F] [max] | 221 °F | |
| Medium temperature range [°F] [min] | -40 °F | |
| MinODP [bar] | 0.03 bar | |
| MinODP [psi] | 0.44 psi | |
| Orifice size [mm] | 24 mm | |
| Outlet connection type | Solder, ODF | |
| Outlet size [in] | 1 3/8 in | |
| Packing format | Multi pack | |
| Parts Program name | EVR | |
| PED category | Art. 4, par. 3 | |
| Product accessories | Solenoid valve accessories | |
| Quantity per packing format | 4 | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R1234ze(E); R125; R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R448A; R449A; R449B; R450A; R452A; R463A; R507A; R513A; R513B; R515A; R515B | |
| SCIP dossier product name | EVR 10-22 | |
| Serviceable | Solenoid valve spare parts | |
| Type designation | Solenoid valve, Solder | |
| UL approved refrigerants | R125; R134a; R22; R290; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R448A; R449A; R449B; R450A; R452A; R463A; R507A; R513A; R513B; R515A; R515B; R600; R600a; R152a; R32; R452B; R454B; R1234ze(E); R454A; R454C; R455A | |
| UL mark | Yes | |
| Valve operation | Servo-diaphragm | |
| Medium temperature range [°C] | -40 - 105 |
Technical data
| Product type | Solenoid valves | |
| Net weight | 1.175 kg | |
| Gross weight | 1.725 kg | |
| Packed volume | 5 L | |
| EAN | 5702428952651 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 032L3268 are available on request. Ask for documents →
