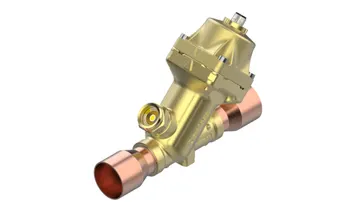

Danfoss 034G3602 - Electric expansion valve, ETS 175L
- Refrigerant temperature [°C] [max]: 70
- Refrigerant temperature [°F] [max]: 158
- Inlet size [in]: 1 1/8 in
- Outlet size [in]: 1 1/8 in
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | ETS 175L | |
| Product group | Expansion valves | |
| Product Name Description | Electric expansion valve | |
| Ambient temperature range [°C] [max] | 70 °C | |
| Ambient temperature range [°C] [min] | -40 °C | |
| Ambient temperature range [°F] [max] | 158 °F | |
| Ambient temperature range [°F] [min] | -40 °F | |
| Approval | CE; CMIM; CRN; EAC; UA; UKCA; UL Recognized | |
| Approval file name | MH7648 | |
| Balanced port [Yes/No] | Yes | |
| Body material | Brass | |
| CE mark | Yes | |
| China RoHS compliance | Yes with exemptions | |
| China RoHS exemption clause | 7.3 | |
| Compatible Danfoss controllers | AK-XM 208C; EKE; EKF; MCX | |
| Connection Code | (3002:X:29) | |
| Connection material | Copper | |
| Contains batteries | No | |
| Cv value [gal/min] | 11.7 gal/min | |
| Direction | Straightway | |
| Electrical conn. Male/Female | Male | |
| Electrical connection | M12 | |
| Electrical connection size | 4 pin | |
| Enclosure rating IP | IP67 | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Flow characteristic | Linear | |
| Flow direction | Bi-flow | |
| Flow direction indicator | Arrow embossed | |
| Fluid Group | 2 | |
| Full travel time CurrDrive [s] | 12.7 s | |
| Full travel time VoltDrive [s] | 25.4 s | |
| Inlet connection type | Solder ODF | |
| Inlet size [in] | 1 1/8 in | |
| Kv value [m³/h] | 10.1 m³/h | |
| Lubricants compatibility | MO; POE; AB; PAG; PAO; PVE | |
| Manual operation option | AST-G service driver | |
| Max allowed duty cycle [%] | 100 % | |
| Max tot PowerCons CurrDrive[W] | 6.5 W | |
| Max tot PowerCons VoltDrive[W] | 5.5 W | |
| Max. Working Pressure [bar] | 37 bar | |
| Max. Working Pressure [psig] | 536 psig | |
| MaxOPD [bar] | 26 bar | |
| MaxOPD [psi] | 377 psi | |
| MaxOPD reverse CurrDrive [bar] | 26 bar | |
| MaxOPD reverse CurrDrive [psi] | 377 psi | |
| MaxOPD reverse VoltDrive [bar] | 26 bar | |
| MaxOPD reverse VoltDrive [psi] | 377 psi | |
| Motor type | Bi-polar | |
| MWP [bar] CRN | 32 bar | |
| MWP [psig] CRN | 463 psig | |
| Operating current max. [A] | 0.5 A | |
| Outlet connection type | Solder ODF | |
| Outlet size [in] | 1 1/8 in | |
| Packing format | Single pack | |
| PED category | I | |
| Phase current (peak) [mA] | 283 mA | |
| Phase current (RMS) [mA] | 200 mA | |
| Phase inductance [µH] | 85000 μH | |
| Product accessories | Stepper valve accessories | |
| Quantity per packing format | 1 pc | |
| Rated cap. cond. note | Full stroke open, normal flow | |
| Rated cap. conditions [IMP] | tcond=90 °F; tevap=40 °F; tliq=82 °F | |
| Rated cap. conditions [SI] | tcond=32 °C; tevap=5 °C; tliq=28 °C | |
| Rated cap. R404A/R507A [kW] | 782 kW | |
| Rated cap. R404A/R507A [TR] | 222 TR | |
| Rated capacity R134a [kW] | 631 kW | |
| Rated capacity R134a [TR] | 180 TR | |
| Rated capacity R407C [kW] | 1133 kW | |
| Rated capacity R407C [TR] | 322 TR | |
| Rated capacity R513A [kW] | 703 kW | |
| Rated capacity R513A [TR] | 200 TR | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1); Cobalt dichloride (CAS no. 7646-79-9) | |
| Refrigerant temperature [°C] [max] | 70 | |
| Refrigerant temperature [°C] [min] | -40 °C | |
| Refrigerant temperature [°F] [max] | 158 | |
| Refrigerant temperature [°F] [min] | -40 °F | |
| Refrigerants | R1234ze(E); R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R448A; R449A; R449B; R450A; R452A; R463A; R507A; R513A; R513B; R515A; R515B; R1234yf | |
| Resistance [kOhm] | 0.1 kOhm | |
| SCIP dossier product name | ETS 175L-550L with sight glass | |
| Serviceable | Stepper valve spare parts | |
| Sightglass | Yes | |
| Step mode | 2-phase full step | |
| Total steps | 3810 (full steps) | |
| UL approved refrigerants | R1234ze(E); R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R448A; R449A; R449B; R450A; R452A; R463A; R507A; R513A; R513B; R515A; R515B; R1234yf | |
| UL mark | Yes | |
| Voltage [V] DC | 12 V |
Technical data
| Product type | Expansion valves | |
| Net weight | 1.754 kg | |
| Gross weight | 1.974 kg | |
| Packed volume | 6.2 L | |
| EAN | 5715162282885 | |
