034G3864

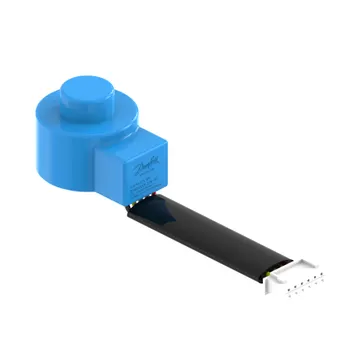

Danfoss 034G3864 - Elec. expansion valve coil, ETS 5M
- Motor type: Uni-polar
- Supply voltage [V] DC: 12
- Used for product: ETS 5T; ETS 5M
- Electrical connector: JST XHP-6
- Cable length [m]: 1.5
Product details
| Type | ETS 5M | |
| Product group | Expansion valves | |
| Product Name Description | Elec. expansion valve coil | |
| Cable length [in] | 59.06 in | |
| Cable length [m] | 1.5 | |
| China RoHS compliance | Yes | |
| China RoHS exemption clause | No | |
| Class of Insulation | B | |
| Coil resistance [Ohm] | 50 Ohm | |
| Contains batteries | No | |
| Current range [A] | 0.24 A | |
| Electrical connector | JST XHP-6 | |
| Enclosure rating IP | IP67 | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Motor type | Uni-polar | |
| Packing format | Industrial pack | |
| Parts Program name | ETS 5M; ETS 5T | |
| Power consumption [W] | 2.8 W | |
| Product accessories | Electric valve accessories | |
| Protection tube length [mm] | 1360 mm | |
| Quantity per packing format | 40 pc | |
| REACH Candidate List substances | No | |
| Serviceable | No | |
| Supply voltage [V] DC | 12 | |
| Used for product | ETS 5T; ETS 5M |
Technical data
| Product type | Expansion valves | |
| Net weight | 0.085 kg | |
| Gross weight | 0.109 kg | |
| Packed volume | 0.5 L | |
| EAN | 5715162951781 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 034G3864 are available on request. Ask for documents →
