034G3868

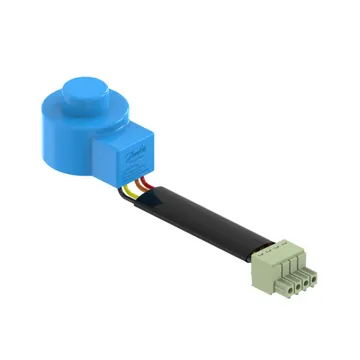

Danfoss 034G3868 - Elec. expansion valve coil, ETS 5M
- Motor type: Bi-polar
- Supply voltage [V] DC: 12
- Used for product: ETS 5T; ETS 5M
- Electrical connector: MC-RA3.5H04C-0001
- Cable length [m]: 4
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | ETS 5M | |
| Product group | Expansion valves | |
| Product Name Description | Elec. expansion valve coil | |
| Cable length [in] | 157.48 in | |
| Cable length [m] | 4 | |
| China RoHS compliance | Yes | |
| China RoHS exemption clause | No | |
| Class of Insulation | B | |
| Coil resistance [Ohm] | 50 Ohm | |
| Compatible Danfoss controllers | EKE100 | |
| Contains batteries | No | |
| Current range [A] | 0.24 A | |
| Electrical connector | MC-RA3.5H04C-0001 | |
| Enclosure rating IP | IP67 | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Motor type | Bi-polar | |
| Packing format | Industrial pack | |
| Parts Program name | ETS 5M; ETS 5T; ETS 5TETS 5; ETS 5TETS 5M | |
| Power consumption [W] | 2.8 W | |
| Product accessories | Electric valve accessories | |
| Protection tube length [mm] | 3800 mm | |
| Quantity per packing format | 24 pc | |
| REACH Candidate List substances | No | |
| Serviceable | No | |
| Supply voltage [V] DC | 12 | |
| Used for product | ETS 5T; ETS 5M |
Technical data
| Product type | Expansion valves | |
| Net weight | 0.16 kg | |
| Gross weight | 0.189 kg | |
| Packed volume | 0.9 L | |
| EAN | 5715255008842 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 034G3868 are available on request. Ask for documents →
