034G6853

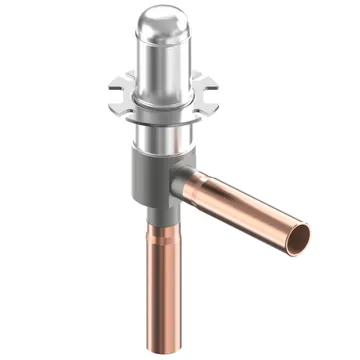

Danfoss 034G6853 - Electric expansion valve, ETS 5T10L
- Refrigerants: R744
- Max. Working Pressure [bar]: 140
- Connection type: Solder, ODM
- Connection material: Cu-plated SS
- Inlet size [in]: 5/16 in
- Outlet size [in]: 5/16 in
- Packing format: Multi pack
- Quantity per packing format: 20
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | ETS 5T10L | |
| Product group | Expansion valves | |
| Product Name Description | Electric expansion valve | |
| Ambient temperature range [°C] [max] | 80 °C | |
| Ambient temperature range [°C] [min] | -40 °C | |
| Ambient temperature range [°F] [max] | 176 °F | |
| Ambient temperature range [°F] [min] | -40 °F | |
| CE mark | No | |
| China RoHS compliance | Yes | |
| China RoHS exemption clause | No | |
| Compatible Danfoss controllers | EIM 336; EKE 100; EKE 1A; EKE 1B; EKE 1C | |
| Connection Code | (3002:X:6); (3002:X:8); (3004:X:6); (3004:X:8) | |
| Connection material | Cu-plated SS | |
| Connection type | Solder, ODM | |
| Contains batteries | No | |
| Design config. Style | L | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Flow characteristic | Linear | |
| Flow direction | Bi-flow | |
| Fluid Group | 2 | |
| Identical product | 034G6803 | |
| In scope of WEEE | No | |
| Inlet connection type | Solder ODM | |
| Inlet size [in] | 5/16 in | |
| Inlet size [mm] | 7.94 mm | |
| Lubricants compatibility | PAG; POE | |
| Manual operation option | AST-G service driver; Manual coil | |
| Max. Leakage [cm³/min] | 150 cm³/min | |
| Max. Working Pressure [bar] | 140 | |
| Max. Working Pressure [psig] | 2030 psig | |
| MaxOPD [bar] | 120 bar | |
| MaxOPD [psig] | 1740 psig | |
| MaxOPD reverse [bar] | 120 bar | |
| MaxOPD reverse [psi] | 1740 psi | |
| Motor type | Permanent magnet stepper motor | |
| Orifice size [mm] | 1 mm | |
| Outlet connection type | Solder ODM | |
| Outlet size [in] | 5/16 in | |
| Outlet size [mm] | 7.94 mm | |
| Packing format | Multi pack | |
| Parts Program name | ETS 5T | |
| PED category | Art. 4, par. 3 | |
| Product accessories | Electric valve accessories | |
| Quantity per packing format | 20 | |
| Rated cap. conditions [SI] | Subcooling=0 °C; Superheat=0 °C；tcond=-5 °C; tevap=-25 °C | |
| Rated capacity R744 [kW] | 7.27 kW | |
| Rated capacity R744 [TR] | 2.1 TR | |
| REACH Candidate List substances | No | |
| Refrigerant temperature [°C] [max] | 80 °C | |
| Refrigerant temperature [°C] [min] | -40 °C | |
| Refrigerant temperature [°F] [max] | 176 °F | |
| Refrigerant temperature [°F] [min] | -40 °F | |
| Refrigerants | R744 | |
| Relative humidity (RH) [%] [max] | 95 % | |
| Relative humidity (RH) [%] [min] | 0 % | |
| Serviceable | No | |
| Step mode | 1-2 excitation (half step); 2-2 excitation (full step) | |
| Storage temperature range [°C] [max] | 65 °C | |
| Storage temperature range [°C] [min] | -30 °C | |
| Storage temperature range [°F] [max] | 149 °F | |
| Storage temperature range [°F] [min] | -22 °F | |
| Total steps | 480 (half steps) | |
| UL mark | No | |
| Valve open pulses@normal flow | 55 ± 16 steps | |
| Valve open pulses@reverse flow | 55 ± 16 steps |
Technical data
| Product type | Expansion valves | |
| Net weight | 0.038 kg | |
| Gross weight | 0.056 kg | |
| Packed volume | 0.3 L | |
| EAN | 5715255094203 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 034G6853 are available on request. Ask for documents →
