042U6132

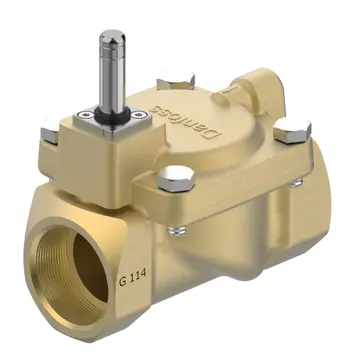

Danfoss 042U6132 - Solenoid valve, EV220S
- Media recommendations: Water & Brine
- Approval: CE; c UL us; WRAS
- Body material: Brass
- Operation: Servo-operated (diaphragm)
- Number of ways: 2/2
Type:
EV220S 32
EV220S 32
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | EV220S | |
| Product group | Solenoid valves | |
| Product Name Description | Solenoid valve | |
| Actuator | S | |
| Actuator size | 9 mm clip-on S | |
| Actuator size [in] | 0.35 in | |
| Actuator system [mm] | 9 mm | |
| Ambient temperature max. [°C] | 50 °C | |
| Ambient temperature max. [°F] | 122 °F | |
| Application | Open | |
| Approval | CE; c UL us; WRAS | |
| Body material | Brass | |
| CE mark | Yes | |
| China RoHS compliance | Yes with exemptions | |
| China RoHS exemption clause | 7.3 | |
| Connection Internal/External | Internal | |
| Connection material | Brass | |
| Connection size [in] | 1 1/4 | |
| Connection standard | ISO 228-1 | |
| Connection type | G | |
| Contains batteries | No | |
| Cv value [gal/min] | 17.3 gal/min | |
| Differential pressure [bar] [max] | 10 bar | |
| Differential pressure [bar] [min] | 0.3 bar | |
| Differential pressure [psi] [max] | 145 psi | |
| Differential pressure [psi] [min] | 4.35 psi | |
| Est. time to close, water [ms] | 4000 ms | |
| Est. time to open, water [ms] | 2500 ms | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Flow direction | Single-flow | |
| Flow direction indicator | Embossed 1-way arrow | |
| Fluid Group | 1 | |
| Function | NO | |
| Kv value [m³/h] | 15 m³/h | |
| Max media viscosity [cSt] | 50 cSt | |
| Max. test pressure [bar] | 15 bar | |
| Max. test pressure [psig] | 217.5 psig | |
| Max. Working Pressure [bar] | 10 bar | |
| Max. Working Pressure [psig] | 145 psig | |
| Media recommendations | Water & Brine | |
| Medium temperature range [°C] [max] | 100 °C | |
| Medium temperature range [°C] [min] | -30 °C | |
| Medium temperature range [°F] [max] | 212 °F | |
| Medium temperature range [°F] [min] | -22 °F | |
| Number of ways | 2/2 | |
| Operation | Servo-operated (diaphragm) | |
| Orifice size [mm] | 32 mm | |
| Orifice size fraction [in] | 1 1/4 in | |
| Packing format | Single pack | |
| Parts Program name | EV220S | |
| Product accessories | Solenoid valve accessories | |
| Quantity per packing format | 1 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| SCIP dossier product name | EV220S | |
| Seal Material | EPDM | |
| Serviceable | No | |
| Specification key | EV220S 32B G 114E NO000 | |
| Type designation | EV220S 32 | |
| UL mark | Yes |
Technical data
| Product type | Solenoid valves | |
| Net weight | 1.47 kg | |
| Gross weight | 2.033 kg | |
| Packed volume | 7.3 L | |
| EAN | 5715162525500 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 042U6132 are available on request. Ask for documents →
