060G6240

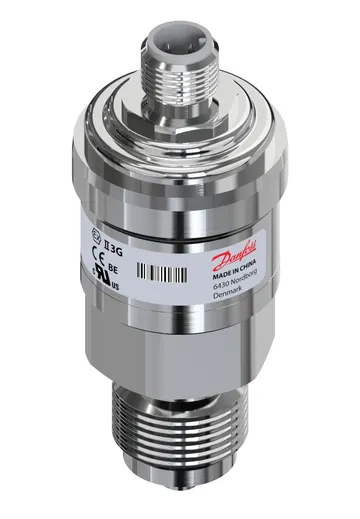

Danfoss 060G6240 - Pressure transmitter, MBS 3000, 0 bar - 40 bar, 0 psi - 580 psi
- Pressure reference: Sealed gauge
- Output signal: Current
- Electrical connection: M12 x 1
- Pressure connection type: G
- Pressure connection size: 1/2
- Specification key: MBS 3000-2631-E3AB08-0
Type:
MBS 3000-2631-E3AB08-0
MBS 3000-2631-E3AB08-0
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
Product details
| Type | MBS 3000 | |
| Product group | Sensors | |
| Product Name Description | Pressure transmitter | |
| + supply | Pin 1 | |
| - common | Pin 4 | |
| Accuracy, max. [±FS%] | 1 % | |
| Accuracy, typical [±FS%] | 0.5 % | |
| Adj. zero point and span | No | |
| Ambient temperature range [°C] [max] | 85 °C | |
| Ambient temperature range [°C] [min] | -25 °C | |
| Ambient temperature range [°F] [max] | 185 °F | |
| Ambient temperature range [°F] [min] | -13 °F | |
| Approval | C UL US UL Recognized; CE | |
| CE mark | Yes | |
| China RoHS compliance | Out of scope | |
| Compensated temp. range [°C] [max] | 80 °C | |
| Compensated temp. range [°C] [min] | 0 °C | |
| Compensated temp. range [°F] [max] | 176 °F | |
| Compensated temp. range [°F] [min] | 32 °F | |
| Contains batteries | No | |
| EEE category | 5 small equipment (any external dimension < 50 cm) | |
| Electrical conn. Male/Female | Male | |
| Electrical connection | M12 x 1 | |
| Electrical connection size | 4 pin | |
| Electrical connection standard | IEC 61076-2-101 | |
| Enclosure rating IP | IP67 | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Flush diaphragm | No | |
| High Clipping Level | 22.4 | |
| In scope of WEEE | Yes | |
| International Article Number | 5702428831970 | |
| Intrinsically safe | No | |
| Low Clipping level | 3.6 | |
| Medium temperature range [°C] [max] | 85 °C | |
| Medium temperature range [°C] [min] | -40 °C | |
| Medium temperature range [°F] [max] | 185 °F | |
| Medium temperature range [°F] [min] | -40 °F | |
| Non-linearity BFSL [±FS%] | 0.5 % | |
| Output signal | Current | |
| Output signal [mA] [max] | 20 mA | |
| Output signal [mA] [min] | 4 mA | |
| Overload pressure max. [bar] | 240 bar | |
| Packing format | Multi pack | |
| Pressure connection HEX [mm] | 27 mm | |
| Pressure connection size | 1/2 | |
| Pressure connection standard | EN 837 | |
| Pressure connection type | G | |
| Pressure Male/Female | Male | |
| Pressure range [bar] [max] | 40 bar | |
| Pressure range [bar] [min] | 0 bar | |
| Pressure range [psi] [max] | 580 psi | |
| Pressure range [psi] [min] | 0 psi | |
| Pressure reference | Sealed gauge | |
| Pulse-snubber | No | |
| Quantity per packing format | 20 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Response time max. [ms] | 4 ms | |
| SCIP dossier product name | AKS/MBS | |
| Specification key | MBS 3000-2631-E3AB08-0 | |
| Supply voltage [V] DC [max] | 32 V | |
| Supply voltage [V] DC [min] | 9 V | |
| UL mark | Yes |
Technical data
| Product type | Sensors | |
| Net weight | 0.164 kg | |
| Gross weight | 0.18 kg | |
| Packed volume | 0.3 L | |
| EAN | 5702428831970 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 060G6240 are available on request. Ask for documents →
