060L112066

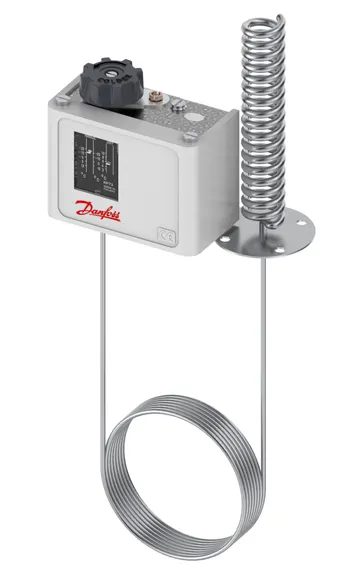

Danfoss 060L112066 - Thermostat, KP75
- Temperature range [°C]: 0 - 35
- Reset function: Auto
- Contact function: SPDT
- Sensor type: Remote duct sensor
- Capillary tube length [mm]: 2000
- Enclosure rating IP: IP30
Product details
| Amb. Temp. Note | 80 °C/176 °F for max 120 min | |
| Ambient temperature range [°C] [max] | 65 °C | |
| Ambient temperature range [°C] [min] | -40 °C | |
| Ambient temperature range [°F] [max] | 150 °F | |
| Ambient temperature range [°F] [min] | -40 °F | |
| Approval | BV; CCC; CE; CMIM; DNV; EAC; GL; LLC CDC EURO-TYSK; LR; LVD; PZH; RINA; RMRS; RoHS China; c UL us UL353, CS C22.2; c UL us UL873, CS C22.2 | |
| Cap. tube length fraction [in] | 78 3/4 in | |
| Capillary tube length [mm] | 2000 mm | |
| CE evaluated | Yes | |
| Charge type | Adsorption | |
| China RoHS compliance | Yes | |
| Contact function | SPDT | |
| Contact rating | AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V | |
| Contain batteries | No | |
| Diff. @ Max. range setting [K] [max] | 12 K | |
| Diff. @ Max. range setting [K] [min] | 2.5 K | |
| Diff. @ Max. range setting[°C] [max] | 12 °C | |
| Diff. @ Max. range setting[°C] [min] | 2.5 °C | |
| Diff. @ Min. range setting [K] [max] | 16 K | |
| Diff. @ Min. range setting [K] [min] | 3.5 K | |
| Diff. @ Min. range setting[°C] [max] | 16 °C | |
| Diff. @ Min. range setting[°C] [min] | 3.5 °C | |
| Differential type | Adjustable | |
| Electrical connection | Rubber cable gland | |
| Electrical connection size | 6-14 mm | |
| Electrical spec. standard | EN 60947-5 | |
| EN 60947 electrical properties | Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A | |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2 | |
| Enclosure rating IP | IP30 | |
| Enclosure rating Nema (~) | 1 | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Max. sensor temperature [°C] | 110 °C | |
| Max. sensor temperature [°F] | 230 °F | |
| Packing format | Multi pack | |
| Product accessories | Switches accessories | |
| Product description | Thermostat | |
| Product group | Switches and thermostats | |
| Product Name Description | Thermostat | |
| Quantity per packing format | 14 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Reset function | Auto | |
| Sensor size (Ø x L) [in] | 1 x 3 5/8 in | |
| Sensor size (Ø x L) [mm] | 25 x 125 mm | |
| Sensor type | Remote duct sensor | |
| Serviceable | No | |
| Temperature range [°C] [max] | 35 °C | |
| Temperature range [°C] [min] | 0 °C | |
| Temperature range [°F] [max] | 95 °F | |
| Temperature range [°F] [min] | 32 °F | |
| Type | KP75 | |
| UK RoHS compliance | Yes | |
| UL approval file name | E31024; MH27572 | |
| UL evaluated | Yes |
Technical data
| Product type | Switches and thermostats | |
| Net weight | 0.462 kg | |
| Gross weight | 0.506 kg | |
| Packed volume | 1.5 L | |
| EAN | 5702428016469 | |
