060L326566

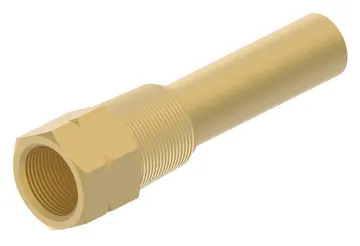

Danfoss 060L326566 - Switches accessories, Sensor Pocket CAS/KPS 65mm G½"
- Packing format: Multi pack
- Quantity per packing format: 10
Type:
Sensor pocket
Sensor pocket
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Contain batteries | No | |
| Ext. sensor pocket Ø [mm] | 15 mm | |
| Int. sensor pocket Ø [mm] | 13.5 mm | |
| Packing format | Multi pack | |
| Pressure inlet conn. size [in] | 1/2-14 | |
| Pressure inlet conn. std. | ANSI/ASME B1.20.1 | |
| Pressure inlet conn. type | NPT | |
| Pressure inlet Internal/Extern | External | |
| Product group | Switches accessories | |
| Product Name Description | Sensor pocket | |
| Quantity per packing format | 10 pc | |
| REACH Candidate List substances | No | |
| Sensor pocket conn. length[mm] | 22 mm | |
| Sensor pocket length min. [in] | 2 9/16 in | |
| Sensor pocket length min. [mm] | 65 mm | |
| Sensor pocket material | Brass | |
| Type | Accessory | |
| Type designation | Sensor pocket | |
| Used for product | CAS; KPS; MBC; RT |
Technical data
| Product type | Switches accessories | |
| Net weight | 0.07 kg | |
| Gross weight | 0.072 kg | |
| Packed volume | 0 L | |
| EAN | 5702423156139 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 060L326566 are available on request. Ask for documents →
