061L1217

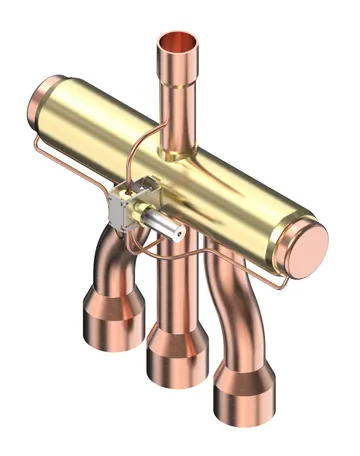

Danfoss 061L1217 - 4-way reversing valve, STF-1513G3
- Medium temperature range [°C]: -20 - 120
- MaxOPD [bar]: 31.0
- MinODP [bar]: 3.000
- Suction conn size [in]: 1 3/8
- Discharge conn size [in]: 7/8
- Design config. Style: F
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Ambient temperature range [°C] [max] | 55 °C | |
| Ambient temperature range [°C] [min] | -20 °C | |
| Ambient temperature range [°F] [max] | 131 °F | |
| Ambient temperature range [°F] [min] | -4 °F | |
| Approval | CE; UKCA; VDE | |
| Cap condition 1 [°C] | 0°C sub-cooling; 38°C condensing; 5°C evaporating; 5°C super-heat | |
| Cap condition 2 [°C] | 54,4 °C condensing; 5°C sub-cooling; 5°C super-heat; 7,2°C evaporating | |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 30.12 kW | |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 27.82 kW | |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 42.39 kW | |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 39.17 kW | |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 36.9 kW | |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 33.25 kW | |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 52.05 kW | |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 46.9 kW | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Coil | No | |
| Contain batteries | No | |
| Design config. Style | F | |
| Discharge conn size [in] | 7/8 in | |
| Discharge conn size [mm] | 22.5 mm | |
| Discharge conn type | FEMALE | |
| EU RoHS compliance | Out of scope | |
| Evap/cond conn size [in] | 1 3/8 | |
| Evap/cond conn size [mm] | 28,9 | |
| Max. Leakage [cm³/min] | 6000 cm³/min | |
| MaxOPD [bar] | 31 | |
| MaxOPD [psig] | 450 psig | |
| Medium temperature range [°C] [max] | 120 °C | |
| Medium temperature range [°C] [min] | -20 °C | |
| Medium temperature range [°F] [max] | 248 °F | |
| Medium temperature range [°F] [min] | -4 °F | |
| MinODP [bar] | 3 | |
| MinODP [psi] | 44 psi | |
| Packing format | Single pack | |
| Process connection material | Copper | |
| Product group | 4-way reversing valves | |
| Product Name Description | 4-way reversing valve | |
| Quantity per packing format | 1 pc | |
| REACH Candidate List substances | No | |
| Refrigerants | R134a; R22; R404A; R407C; R410A | |
| Shock resistance standard | JIS C 60068-2-27 | |
| Suction conn size [in] | 1 3/8 | |
| Suction conn size [mm] | 28.9 mm | |
| Type | STF | |
| Type designation | STF-1513G3 | |
| UK RoHS compliance | Out of scope | |
| Vibration stability [m/s²] | 19.6 m/s² | |
| Vibration test standard | JIS C 60068-2-6 | |
| Medium temperature range [°C] | -20 - 120 |
Technical data
| Product type | 4-way reversing valves | |
| Net weight | 1.55 kg | |
| Gross weight | 2.546 kg | |
| Packed volume | 19.6 L | |
| EAN | 5702428273534 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 061L1217 are available on request. Ask for documents →
