Home/Climate Solutions for heating/Strainers/Strainers for District Heating and District Cooling/FVF/ 065B7775
Product details
| Type | FVF | |
| Product group | Auxiliary Products | |
| Approval standard | DIN EN 1092-2 | |
| China RoHS compliance | Out of scope | |
| Connection size | 50 | |
| Connection types | Flange | |
| Contains batteries | No | |

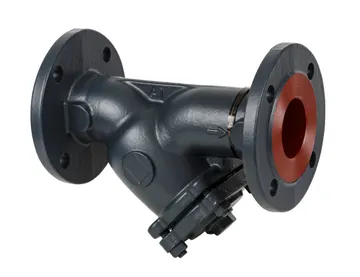

| Description | FVF DN50 PN25 with Plug | |
| Diameter [mm] | 50 mm | |
| EU RoHS compliance | Out of scope | |
| Kvs values [m³/h] | 54 m³/h | |
| Label product | Yes | |
| Material | Ductile iron EN-GJS-400-18-LT (GGG40.3) | |
| Media temperature [°C] [Max] | 150 °C | |
| Media temperature [°C] [Min] | -20 °C | |
| Medium alternative | Glycolic water up to 50% | |
| Mesh size [mm] | 0.87 mm | |
| Number of meshes [n/cm²] | 64 | |
| Permissible media | District heating/cooling circulation water | |
| Pressure class | PN 25 | |
| Pressure nominal [bar] | 25 bar | |
| REACH Candidate List substances | No | |
| Size | DN 50 | |
| Strainer type | With plug |
Technical data
| Product type | Auxiliary Products | |
| Net weight | 8.696 kg | |
| Gross weight | 9.07 kg | |
| Packed volume | 11.6 L | |
| EAN | 5702421555378 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 065B7775 are available on request. Ask for documents →
