Product details
| Type | Non-standard Butterfly valves accessories | |
| Product group | Butterfly valves accessories | |
| Ambient temperature [°C] [max] | 110 °C | |
| Ambient temperature [°C] [min] | -25 °C | |
| Application | Heating and cooling | |
| Approval standard | 2; EN12266-1; PED 97/23/EEC | |
| Body material | Cast iron / Ductile iron | |
| Connection types | Gear Flange | |
| Contains batteries | No | |

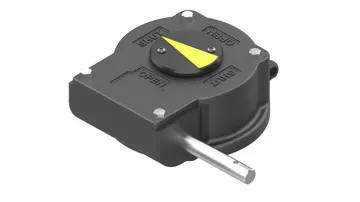

| Description | SBFV Gearbox DN250 | |
| Function | On/off | |
| Gear flange type | F12 | |
| Grade of enclosure | IP68 | |
| Mounting orientation | All | |
| Operating torque [Nm] | 1500 N-m | |
| Operation type | Handwheel | |
| Position indicator | Yes | |
| REACH Candidate List substances | No | |
| Rotation angle [°] | 90 ° | |
| Storage temperature [°C] [Max] | 110 °C | |
| Storage temperature [°C] [Min] | -25 °C |
Technical data
| Product type | Butterfly valves accessories | |
| Net weight | 14 kg | |
| Gross weight | 14 kg | |
| EAN | 5702428949910 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 065B8281 are available on request. Ask for documents →
