Product details
| Type | VMT | |
| Product group | Thermostatic control valves | |
| Application | Heating and cooling | |
| Cavitation factor | 0.5 | |
| China RoHS compliance | Out of scope | |
| Connection size | G 1 A | |
| Connection types | External Thread | |
| Contains batteries | No | |

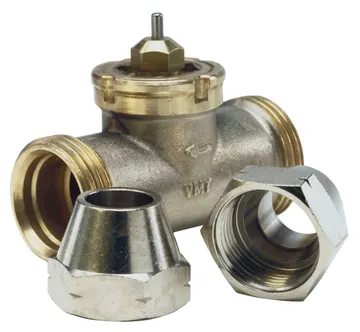

| Description | VMT PN10 20/5 2-way/2 ext.thr Straight | |
| Diameter [mm] | 20 mm | |
| Differential pressure range [bar] [Max] | 0.2 bar | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Flow characteristic | Linear | |
| Function | Control valve | |
| Kvs values [m³/h] | 5 m³/h | |
| Media pH [Max] | 10 | |
| Media pH [Min] | 7 | |
| Media temperature [°C] [Max] | 120 °C | |
| Media temperature [°C] [Min] | 2 °C | |
| Medium alternative | Glycolic water up to 30% | |
| Mounting version | Free | |
| Number of ports | 2 | |
| Packing format | Multi pack | |
| Permissible media | District heating/cooling circulation water | |
| PN alternative VSP | 6 | |
| Pressure class | PN 10 | |
| Pressure nominal [bar] | 10 bar | |
| Quantity per packing format | 50 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| SCIP dossier product name | VMT PN10 | |
| Spindle position | Normally open | |
| Stroke [mm] | 1.1 mm | |
| Valve body material | Brass W. No 2.0402 | |
| Valve cone material | NBR rubber | |
| Valve size | DN 20 | |
| Valve stem material | CrMo steel |
Technical data
| Product type | Thermostatic control valves | |
| Net weight | 0.416 kg | |
| Gross weight | 0.416 kg | |
| Packed volume | 0.4 L | |
| EAN | 5702420024585 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 065F0119 are available on request. Ask for documents →
