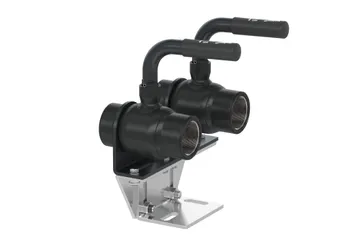

Danfoss 065N0816 - Ball valves, JIP-II-TW, Reduced Bore, PN 40, DN 32, Internal thread

Product details

Type		JIP-II-TW
Product group		Ball valves
Ambient temperature [°C] [min]		-40 °C
Application		Heating and cooling
Approval standard		EN 12266 part 1 P10-P11-P12 & part 2 F20; PED Directive 97/23/EEC Modul H1
Body material		Weldable steel #20 or similar CE PED approved material
China RoHS compliance		Out of scope
Cone /seat sealing material		PTFE+C
Connection size		Rp 1 1/4
Connection types		Internal thread
Contains batteries		No
Description		JIP-II DN 32 TW PN40 L lo C=var.
Differential pressure range [bar] [Max]		40 bar
EU RoHS compliance		Out of scope
Function		On/off
Kvs values [m³/h]		52 m³/h
Leakage rate [% Kvs]		Leakage rate A
Length [mm]		105 mm
Media pH [Max]		10
Media pH [Min]		7
Media temperature [°C] [Max]		180 °C
Media temperature [°C] [Min]		0 °C
Medium alternative		Glycolic water up to 50%
Mounting orientation		All
Number of ports		2
Operation type		T handle
Packing format		Multi pack
Permissible media		District heating/cooling circulation water
Pressure class		PN 40
Quantity per packing format		4 pc
REACH Candidate List substances		No
Rotation angle [°]		90 °
Stem sealing material		PTFE/Graphite
Storage temperature [°C] [Min]		-40 °C
Valve ball material		Stainless steel
Valve body material		Weldable steel #20 or similar CE PED approved material
Valve size		DN 32
Valve stem material		Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306
Valve type		Reduced Bore
Welding ends material		Weldable steel #20 or similar CE PED approved material

Operating guides, design guides, certificates and CAD drawings for 065N0816 are available on request. Ask for documents →
