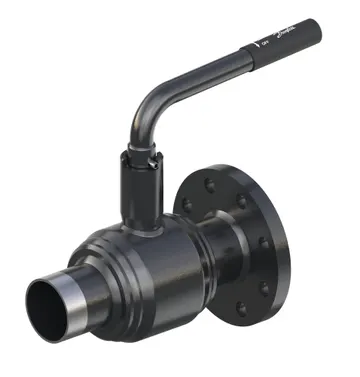

Danfoss 065N1630 - Ball valves, JIP-FW, FB, Handle, Full Bore, PN 25, DN 65, Flange / Welded

Product details

Type		JIP-FW, FB, Handle
Product group		Ball valves
Ambient temperature [°C] [min]		-40 °C
Application		Heating and cooling
Approval standard		EN 12266 part 1 P10-P11-P12 & part 2 F20; PED Directive 97/23/EEC Modul H1
Body material		Weldable steel #20 or similar CE PED approved material
China RoHS compliance		Out of scope
Cone /seat sealing material		PTFE+C
Connection types		Flange / Welded
Contains batteries		No
Description		JIP-FW DN 65 FB PN25 L hi
Differential pressure range [bar] [Max]		25 bar
EU RoHS compliance		Out of scope
Flanges material		EN1092-Weldable steel #20 or similar CE PED approved material
Function		On/off
Kvs values [m³/h]		820 m³/h
Leakage rate [% Kvs]		Leakage rate A
Length [mm]		285 mm
Media pH [Max]		10
Media pH [Min]		7
Media temperature [°C] [Max]		180 °C
Media temperature [°C] [Min]		0 °C
Medium alternative		Glycolic water up to 50%
Mounting orientation		All
Number of ports		2
Operation type		Handle
Permissible media		District heating/cooling circulation water
Pressure class		PN 25
REACH Candidate List substances		No
Rotation angle [°]		90 °
Stem sealing material		PTFE/Graphite
Storage temperature [°C] [Min]		-40 °C
Valve ball material		Stainless steel
Valve body material		Weldable steel #20 or similar CE PED approved material
Valve size		DN 65
Valve stem material		Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306
Valve type		Full Bore
Welding ends material		Weldable steel #20 or similar CE PED approved material

Operating guides, design guides, certificates and CAD drawings for 065N1630 are available on request. Ask for documents →
