067B3354

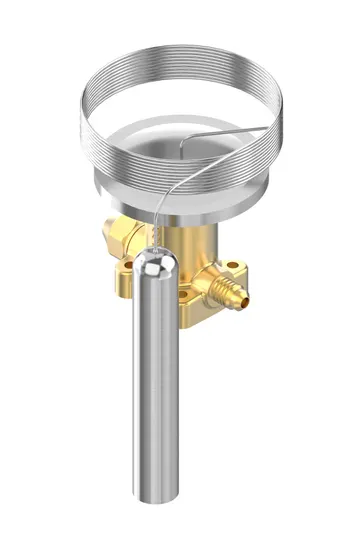

Danfoss 067B3354 - Element for expansion valve, TE 20, R404A/R507A
- Temperature range [°C]: -60 - -25
- MOP Point [°C]: -20
- Pressure equalization: Externally equalized
Type:
Element
Element
Product details
| Type | TE 20 | |
| Product group | Expansion valves | |
| Product Name Description | Element for expansion valve | |
| Approval | EAC; LLC CDC TYSK | |
| Body material | Brass | |
| Capillary tube length [in] | 118 in | |
| Capillary tube length [mm] | 3000 mm | |
| China RoHS compliance | Yes | |
| Contains batteries | No | |
| Equalization connection type | Flare | |
| Equalization size [in] | 1/4 in | |
| EU RoHS compliance | Out of scope | |
| Max. Working Pressure [bar] | 28 bar | |
| Max. Working Pressure [psig] | 400 psig | |
| MOP Point [psig] | MOP 30 | |
| MOP Point [°C] | -20 | |
| MOP Point [°F] | -5 °F | |
| Packing format | Multi pack | |
| Parts Program name | TE 20 | |
| Pressure equalization | Externally equalized | |
| Quantity per packing format | 9 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R404A/R507A | |
| SCIP dossier product name | TE -Thermostatic expansion valve | |
| Temperature range [°C] [max] | -25 °C | |
| Temperature range [°C] [min] | -60 °C | |
| Temperature range [°F] [max] | -15 °F | |
| Temperature range [°F] [min] | -75 °F | |
| Type designation | Element | |
| Temperature range [°C] | -60 - -25 |
Technical data
| Product type | Expansion valves | |
| Net weight | 0.62 kg | |
| Gross weight | 0.712 kg | |
| Packed volume | 2.1 L | |
| EAN | 5702428148191 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 067B3354 are available on request. Ask for documents →
