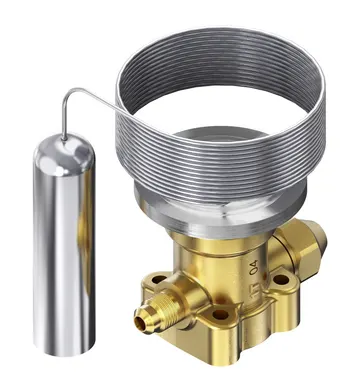

Danfoss 067B3502 - Element for expansion valve, TE 5, R407F/R407A

Type:
Element

Product details

Type		TE 5
Product group		Expansion valves
Product Name Description		Element for expansion valve
Approval		EAC; LLC CDC TYSK
Body material		Brass
Capillary tube length [in]		118 in
Capillary tube length [mm]		3000 mm
China RoHS compliance		Yes
Contains batteries		No
Equalization connection type		Flare
Equalization size [in]		1/4 in
EU RoHS compliance		Yes with exemptions
EU RoHS exemption clause		6(c)
Max. Working Pressure [bar]		28 bar
Max. Working Pressure [psig]		400 psig
MOP Point [psig]		MOP 60
MOP Point [°C]		0
MOP Point [°F]		32 °F
Packing format		Multi pack
Parts included		Bulb strap; Gasket; Key; O-ring
Parts Program name		TE 5
Pressure equalization		Externally equalized
Product accessories		TXV accessories
Quantity per packing format		12 pc
REACH Candidate List substances		Lead (CAS no. 7439-92-1)
Refrigerants		R407F/R407A
SCIP dossier product name		TE -Thermostatic expansion valve
Serviceable		TXV spare parts
Superheat setting		Adjustable
Temperature range [°C] [max]		-5 °C
Temperature range [°C] [min]		-40 °C
Temperature range [°F] [max]		25 °F
Temperature range [°F] [min]		-40 °F
Type designation		Element
Temperature range [°C]		-40 - -5

Operating guides, design guides, certificates and CAD drawings for 067B3502 are available on request. Ask for documents →
