067B3532

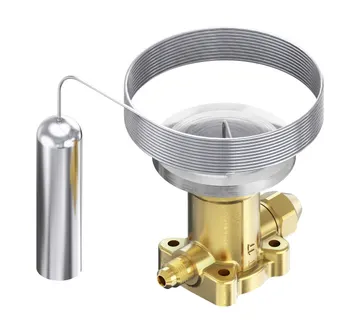

Danfoss 067B3532 - Element for expansion valve, TE 12, R407F/R407A
- Temperature range [°C]: -40 - 10
- Pressure equalization: Externally equalized
Type:
Element
Element
Product details
| Type | TE 12 | |
| Product group | Expansion valves | |
| Product Name Description | Element for expansion valve | |
| Approval | EAC; LLC CDC TYSK | |
| Body material | Brass | |
| Capillary tube length [in] | 118 in | |
| Capillary tube length [mm] | 3000 mm | |
| China RoHS compliance | Yes | |
| Contains batteries | No | |
| Equalization connection type | Flare | |
| Equalization size [in] | 1/4 in | |
| EU RoHS compliance | Out of scope | |
| Max. Working Pressure [bar] | 28 bar | |
| Max. Working Pressure [psig] | 400 psig | |
| Packing format | Multi pack | |
| Parts included | Bulb strap; Gasket; Key; O-ring | |
| Parts Program name | TE 12 | |
| Pressure equalization | Externally equalized | |
| Product accessories | TXV accessories | |
| Quantity per packing format | 9 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R407F/R407A | |
| SCIP dossier product name | TE -Thermostatic expansion valve | |
| Serviceable | TXV spare parts | |
| Superheat setting | Adjustable | |
| Temperature range [°C] [max] | 10 °C | |
| Temperature range [°C] [min] | -40 °C | |
| Temperature range [°F] [max] | 50 °F | |
| Temperature range [°F] [min] | -40 °F | |
| Type designation | Element | |
| Temperature range [°C] | -40 - 10 |
Technical data
| Product type | Expansion valves | |
| Net weight | 0.489 kg | |
| Gross weight | 0.624 kg | |
| Packed volume | 2.1 L | |
| EAN | 5702428915205 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 067B3532 are available on request. Ask for documents →
