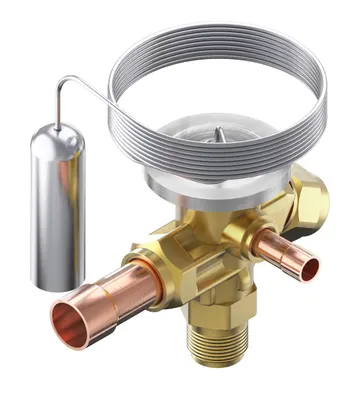

Danfoss 068Z3738 - Thermostatic expansion valve, TE 2, R448A; R449A

Product details

Type		TE 2
Product group		Expansion valves
Product Name Description		Thermostatic expansion valve
Approval		EAC; UA
Body material		Brass
Capillary tube length [in]		59 in
Capillary tube length [mm]		1500 mm
China RoHS compliance		Yes with exemptions
China RoHS exemption clause		7.1; 7.3
Connection Code		(3011:X:10; 3002:X:13)
Connection material		Brass; Copper
Contains batteries		No
Direction		Angleway
Equalization connection type		Solder
Equalization size [in]		1/4 in
EU RoHS compliance		Yes with exemptions
EU RoHS exemption clause		6(a); 6(c)
Flow direction		Single-flow
Flow direction indicator		Embossed 1-way arrow
Fluid Group		2
Inlet connection type		Flare
Inlet size [in]		3/8 in
Max. Working Pressure [bar]		34 bar
Max. Working Pressure [psig]		500 psig
MOP Point [psig]		MOP 35
MOP Point [°C]		-20
MOP Point [°F]		-5 °F
Outlet connection type		Solder
Outlet size [in]		1/2 in
Packing format		Multi pack
Parts included		Bulb strap
Parts Program name		T2/TE2
PED category		Art. 4, par. 3
Pressure equalization		Externally equalized
Product accessories		TXV accessories
Quantity per packing format		20 pc
REACH Candidate List substances		Lead (CAS no. 7439-92-1)
Refrigerants		R448A; R449A
SCIP dossier product name		T2 /TE2 - Thermostatic Expansion Valve
Serviceable		TXV spare parts
Static Superheat (SS) [°C]		4 °C
Static Superheat (SS) [°F]		7.2 °F
Superheat setting		Adjustable
Temperature range [°C] [max]		-25 °C
Temperature range [°C] [min]		-60 °C
Temperature range [°F] [max]		-15 °F
Temperature range [°F] [min]		-75 °F
UA address		UA_2L.png
Temperature range [°C]		-60 - -25

Operating guides, design guides, certificates and CAD drawings for 068Z3738 are available on request. Ask for documents →
