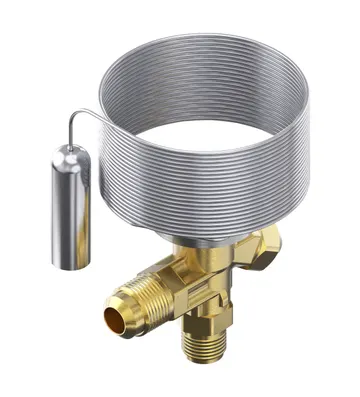

Danfoss 068Z3803 - Thermostatic expansion valve, T 2, R404A/R507A

Product details

Type		T 2
Product group		Expansion valves
Product Name Description		Thermostatic expansion valve
Approval		EAC; UA
Body material		Brass
Capillary tube length [in]		195 in
Capillary tube length [mm]		5000 mm
China RoHS compliance		Yes with exemptions
Connection Code		(3011:X:10; 3011:X:13)
Connection material		Brass
Contains batteries		No
Direction		Angleway
EU RoHS compliance		Yes with exemptions
EU RoHS exemption clause		6(a); 6(c)
Flow direction		Single-flow
Flow direction indicator		Embossed 1-way arrow
Fluid Group		2
Inlet connection type		Flare
Inlet size [in]		3/8 in
Max. Working Pressure [bar]		34 bar
Max. Working Pressure [psig]		500 psig
Outlet connection type		Flare
Outlet size [in]		1/2 in
Packing format		Multi pack
Parts included		Bulb strap
Parts Program name		T2/TE2
PED category		Art. 4, par. 3
Pressure equalization		Internally equalized
Product accessories		TXV accessories
Quantity per packing format		20 pc
Rated cap. cond. Range N [IMP]		OS=10.8 °F; tcond=100 °F; tevap=40 °F; tliq=98 °F
Rated cap. cond. Range N [SI]		OS=6K; tcond=38 °C; tevap=4.4 °C; tliq=37 °C
REACH Candidate List substances		Lead (CAS no. 7439-92-1)
Refrigerants		R404A/R507A
SCIP dossier product name		T2 /TE2 - Thermostatic Expansion Valve
Serviceable		TXV spare parts
Static Superheat (SS) [°C]		6 °C
Static Superheat (SS) [°F]		10.8 °F
Superheat setting		Adjustable
Temperature range [°C] [max]		10 °C
Temperature range [°C] [min]		-40 °C
Temperature range [°F] [max]		50 °F
Temperature range [°F] [min]		-40 °F
UA address		UA_2L.png
Temperature range [°C]		-40 - 10
