069G2502

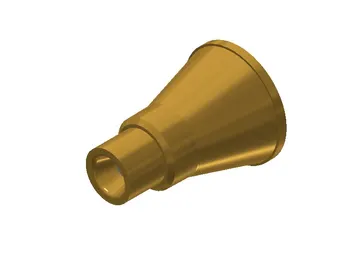

Danfoss 069G2502 - Refrigerant distributor, RD 27, 6 pc, 1/2 in, 3/16 in, 5.00 mm
- Inlet connection type: Solder, ODM
- Inlet size [in]: 1/2 in
- Outlet size [in]: 3/16 in
- Number of holes: 6
- Max. Working Pressure [bar]: 49.0
- Nozzle size [mm]: 5.00
Type:
RD27-H05-H06
RD27-H05-H06
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
Product details
| Approval | UL | |
| Body size | 27 | |
| China RoHS compliance | Yes | |
| Contain batteries | No | |
| EU RoHS compliance | Out of scope | |
| Inlet connection type | Solder, ODM | |
| Inlet size [in] | 1/2 in | |
| Max. Working Pressure [bar] | 49 bar | |
| Max. Working Pressure [psig] | 711 psig | |
| Nozzle size [mm] | 5 mm | |
| Number of holes | 6 pc | |
| Outlet size [in] | 3/16 in | |
| Packing format | Industrial pack | |
| Product group | Refrigerant distributors | |
| Product Name Description | Refrigerant distributor | |
| Quantity per packing format | 24 pc | |
| Type | RD 27 | |
| Type designation | RD27-H05-H06 | |
| UK RoHS compliance | Out of scope | |
| UL evaluated | Yes |
Technical data
| Product type | Refrigerant distributors | |
| Net weight | 0.093 kg | |
| Gross weight | 0.093 kg | |
| Packed volume | 0.3 L | |
| EAN | 5702428074216 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 069G2502 are available on request. Ask for documents →
