069G300612

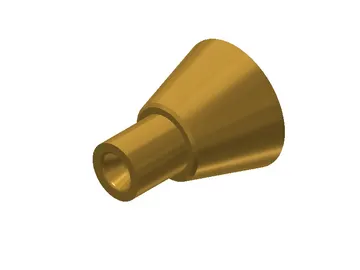

Danfoss 069G300612 - Refrigerant distributor, RD 49, 12 pc, 8.00 mm
- Type designation: RD49-C08-B12
- Inlet connection type: Solder, ODM
- Number of holes: 12
- Max. Working Pressure [bar]: 49.0
- Nozzle size [mm]: 8.00
Type:
RD49-C08-B12
RD49-C08-B12
Product details
| Approval | UL | |
| Body size | 49 | |
| China RoHS compliance | Yes | |
| Contain batteries | No | |
| EU RoHS compliance | Out of scope | |
| Inlet connection type | Solder, ODM | |
| Inlet size [mm] | 22 mm | |
| Max. Working Pressure [bar] | 49 bar | |
| Max. Working Pressure [psig] | 711 psig | |
| Nozzle size [mm] | 8 mm | |
| Number of holes | 12 pc | |
| Outlet size [mm] | 6 mm | |
| Packing format | Industrial pack | |
| Product group | Refrigerant distributors | |
| Product Name Description | Refrigerant distributor | |
| Quantity per packing format | 15 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| SCIP dossier product name | RD | |
| Type | RD 49 | |
| Type designation | RD49-C08-B12 | |
| UK RoHS compliance | Out of scope | |
| UL evaluated | Yes |
Technical data
| Product type | Refrigerant distributors | |
| Net weight | 0.341 kg | |
| Gross weight | 0.341 kg | |
| Packed volume | 0.5 L | |
| EAN | 5702422055068 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 069G300612 are available on request. Ask for documents →
