Product details
| Approval | EAC; LLC CDC TYSK | |
| China RoHS compliance | Yes | |
| Contain batteries | No | |
| EU RoHS compliance | Out of scope | |
| Flow direction indicator | Engraved 1-way arrow | |
| Inlet connection type | Solder, ODF | |
| Inlet Hot gas [in] | 1/2 in | |
| Inlet Hot gas [mm] | 12 mm | |
| Inlet Liquid [in] | 5/8 in | |
| Inlet Liquid [mm] | 16 mm | |
| Outlet connection type | Solder, ODM | |
| Outlet size [in] | 5/8 in | |
| Outlet size [mm] | 16 mm | |
| Packing format | Multi pack | |

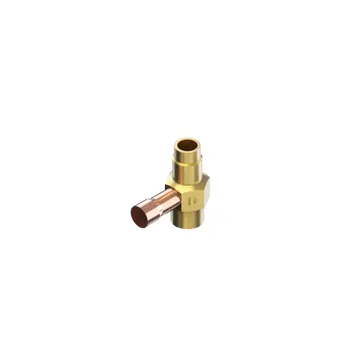

| Product description | Liquid-gas mixer | |
| Product group | KV valves accessories | |
| Product Name Description | Liquid gas mixer | |
| Quantity per packing format | 80 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R1234ze(E); R1270; R134a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R448A; R449A; R449B; R450A; R452A; R454A; R454B; R454C; R455A; R507A; R513A; R515B; R516A; R600; R600a | |
| Type | LG 12 - 16 | |
| UK RoHS compliance | Out of scope | |
| Used for product | CPCE 12 |
Technical data
| Product type | KV valves accessories | |
| Net weight | 0.099 kg | |
| Gross weight | 0.114 kg | |
| Packed volume | 0.2 L | |
| EAN | 5702422030010 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 069G4001 are available on request. Ask for documents →
