075G4177

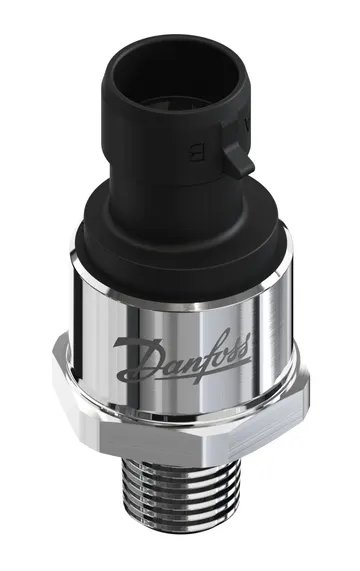

Danfoss 075G4177 - Pressure transmitter, DST P140, 0 bar - 16 bar, 0 psi - 232 psi
- Pressure reference: Gauge (relative)
- Output signal: Current
- Electrical connection: Round Packard Metri-Pack
- Pressure connection type: R
- Pressure connection size: 1/4
- Specification key: DST P140-2211-C2CD13-0
Type:
DST P140-2211-C2CD13-0
DST P140-2211-C2CD13-0
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
Product details
| Type | DST P140 | |
| Product group | Sensors | |
| Product Name Description | Pressure transmitter | |
| + supply | Pin B | |
| - common | Pin A | |
| Ambient temperature range [°C] [max] | 85 °C | |
| Ambient temperature range [°C] [min] | -40 °C | |
| Approval | C UL US UL Recognized; CE | |
| CE mark | Yes | |
| China RoHS compliance | Out of scope | |
| Compensated temp. range [°C] [max] | 100 °C | |
| Compensated temp. range [°C] [min] | -40 °C | |
| Contains batteries | No | |
| Electrical connection | Round Packard Metri-Pack | |
| Electrical connection size | 3 pin | |
| Electrical connection standard | 150.2 SERIES | |
| Electrical Connector Color | Black | |
| Enclosure rating IP | IP69K | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| High Clipping Level | 20.5 | |
| Housing material | 304L | |
| Identical product | 075G1221 | |
| In scope of WEEE | Yes | |
| International Article Number | 5715162486986 | |
| Low Clipping level | 3.8 | |
| Medium temperature range [°C] [max] | 100 °C | |
| Medium temperature range [°C] [min] | -40 °C | |
| Output signal | Current | |
| Output signal [mA] [max] | 20 mA | |
| Output signal [mA] [min] | 4 mA | |
| Overload pressure max. [bar] | 64 bar | |
| Overload pressure max. [psi] | 928 psi | |
| Packing format | Industrial pack | |
| Pressure connection HEX [mm] | 27 mm | |
| Pressure connection size | 1/4 | |
| Pressure connection standard | NONE | |
| Pressure connection type | R | |
| Pressure Male/Female | Male | |
| Pressure range [bar] [max] | 16 bar | |
| Pressure range [bar] [min] | 0 bar | |
| Pressure range [psi] [max] | 232 psi | |
| Pressure range [psi] [min] | 0 psi | |
| Pressure reference | Gauge (relative) | |
| Pulse-snubber | No | |
| Quantity per packing format | 60 pc | |
| REACH Candidate List substances | No | |
| Response time max. [ms] | 2 ms | |
| Specification key | DST P140-2211-C2CD13-0 | |
| Supply voltage [V] DC [max] | 28 V | |
| Supply voltage [V] DC [min] | 8 V | |
| TEB inside CTR ±FS [%] | 3 % | |
| UL mark | Yes | |
| Wetted part material | 304L/316L |
Technical data
| Product type | Sensors | |
| Net weight | 0.059 kg | |
| Gross weight | 0.072 kg | |
| Packed volume | 0.1 L | |
| EAN | 5715162486986 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 075G4177 are available on request. Ask for documents →
