080G5555

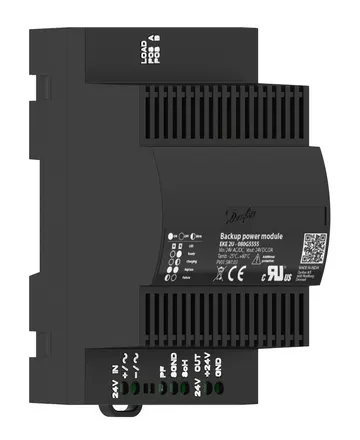

Danfoss 080G5555 - Backup power module, EKE 2U
- Supply voltage [V] AC: 24
- Supply voltage [V] DC: 24
- Approval: UL; RoHS; CE; UKCA
- Max. current output/phase [A]: 2
- Used for product: EKE 1A; EKD 316C; EIM 365; EKE 1D; MCX152V; EKE 1C; MCX061V; EKD 316; EKE 1B
- Packing format: Multi pack
Product details
| Ambient temperature range [°C] [max] | 60 °C | |
| Ambient temperature range [°C] [min] | -25 °C | |
| Analog inputs (AI) [pc] | 0 pc | |
| Analog outputs (AO) [pc] | 0 pc | |
| Approval | CE; RoHS; UKCA; UL | |
| Battery back-up [V] DC | 24 V | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Communication type | Digital output | |
| Contain batteries | No | |
| Digital inputs (DI) [pc] | 0 pc | |
| Digital outputs (DO) [pc] | 1 pc | |
| Display - option | None | |
| Display on front | No | |
| Enclosure rating note | IP40 for Housing | |
| EU RoHS compliance | Out of scope | |
| Frequency [Hz] | 50/60 Hz | |
| Further information | Maximum nominal output current | |
| Max. current output/phase [A] | 2 A | |
| Mounting method | DIN rail | |
| Number of pressure sensors | 0 | |
| Number of Sensor inputs | 0 pc | |
| Number of temperature sensors | 0 | |
| Other RoHS documentation | EAEU RoHS | |
| Packing format | Multi pack | |
| Power consumption [VA] | 15 VA | |
| Product accessories | Electron. control accessories | |
| Product features | Backup power for up to 2 EKE 1; LEDs showing status: Charging; LEDs showing status: Failed; LEDs showing status: Ready; LEDs showing status: Replace; Shared power supply; State of Health detection; Status output signal: Charging; Status output signal: Failed; Status output signal: Ready; Status output signal: Replace | |
| Product group | Electronic controllers | |
| Product Language | English | |
| Product Name Description | Backup power module | |
| Quantity per packing format | 24 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Serviceable | No | |
| Supply voltage [V] AC | 24 V | |
| Supply voltage [V] DC | 24 V | |
| Type | EKE 2U | |
| UK RoHS compliance | Out of scope | |
| UL evaluated | Yes | |
| Used for product | EIM 365; EKD 316; EKD 316C; EKE 1A; EKE 1B; EKE 1C; EKE 1D; MCX061V; MCX152V |
Technical data
| Product type | Electronic controllers | |
| Net weight | 0.25 kg | |
| Gross weight | 0.3 kg | |
| Packed volume | 1.9 L | |
| EAN | 5714279874402 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 080G5555 are available on request. Ask for documents →
