088U0522

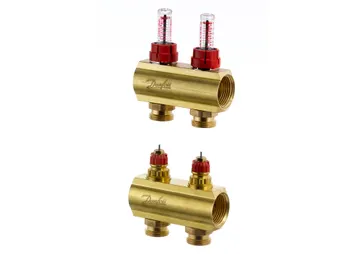

Danfoss 088U0522 - Manifold FHF-F, BRASS||BRASS
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
Product details
| Type | Manifold FHF-F | |
| Product group | Manifold & Manifold Kits | |
| Bleed valve | Not included | |
| China RoHS compliance | Out of scope | |
| Description | Manifold 2+2 Danfoss BIV Flowmeter | |
| Differential pressure [bar] [max] | 0.6 bar | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Flow temperature [°C] [Max] | 60 °C | |
| Flowmeter | Yes | |
| Material | BRASS | |
| Number of heating manifold connections [loops] [Max] | 2 | |
| Operating temperature [°C] [max] | 60 °C | |
| Presetting | yes | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| SCIP dossier product name | Manifold x+x Danfoss BIV Flowmeter | |
| Test pressure [bar] | 10 bar | |
| Valve connection | Danfoss RA | |
| Working pressure [bar] [Max] | 6 bar |
Technical data
| Product type | Manifold & Manifold Kits | |
| Net weight | 1.212 kg | |
| Gross weight | 1.212 kg | |
| Packed volume | 2 L | |
| EAN | 5702420080925 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 088U0522 are available on request. Ask for documents →
