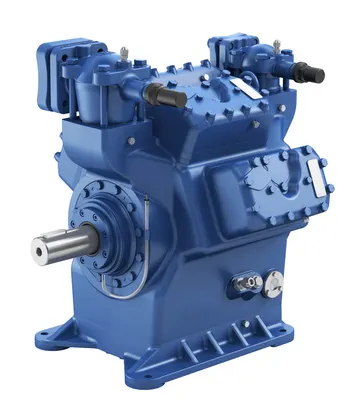

Danfoss 097B11517 - BOCK, F88/3235, Open Type Compressor

Type:
F88/3235

Product details

Type		F88
Product group		Open type compressors
Product Name Description		Reciprocating compressor F
Approval standard		No
Brand		BOCK
Capacity regulator		No
Clutch type		No
Colour		Blue (standard)
Compressor power supply [V]		w/o motor
Contains batteries		No
Cylinder		8
Description		Compressor F88/3235
Discharge connection size [in]		2 1/8 in
Discharge connection size [mm]		54 mm
Discharge connection size type		Standard
Discharge connection type		Soldering
Elevated base plate		No
Family		F Compressors
Flywheel		No
Frequency Hz		w/o motor
In scope of WEEE		No
Legacy BOCK ID		11517
Length (mm)		703
Max pressure (PS) - high side		28 bar
Max pressure (PS) - low side		19 bar
Model number		F88/3235
Oil differential pressure sensor		No
Oil pressure safety switch		No
Oil service valve		No
Oil sump heater		No
Oil temperature sensor		No
Oil type		BOCKlub A46
REACH Candidate List substances		Lead (CAS no. 7439-92-1); 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Refrigerants		R22
SCIP dossier product name		F(X)88/…. – series
Step protection for CR/SU		No
Suction connection size [in]		3 1/8 in
Suction connection size [mm]		76 mm
Suction connection size type		Standard
Suction connection type		Soldering
Technology		Open Type Compressor
Thermal protection thermostat		No
Total height [mm]		689 mm
Type designation		F88/3235
Width [mm]		646 mm

Operating guides, design guides, certificates and CAD drawings for 097B11517 are available on request. Ask for documents →
