097C1446

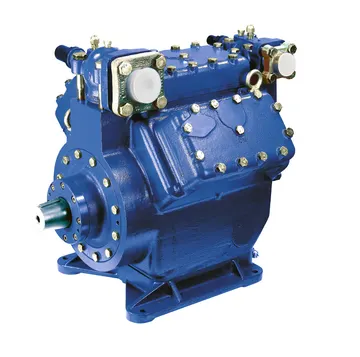

Danfoss 097C1446 - BOCK, FX16/2051, Open Type Compressor
- Refrigerants: R404A; R407C; R134a
- Compressor power supply [V]: w/o motor
- Oil type: BOCKlub E55
- Legacy BOCK ID: 11712
Type:
FX16/2051
FX16/2051
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
Product details
| Type | FX16 | |
| Product group | Open type compressors | |
| Product Name Description | Reciprocating compressor F | |
| 2nd/3rd sight glass | No | |
| Approval standard | No | |
| Brand | BOCK | |
| Capacity regulator | 2x 230V AC,50Hz | |
| Clutch type | No | |
| Colour | Blue (standard) | |
| Compressor power supply [V] | w/o motor | |
| Contains batteries | No | |
| Cylinder | 6 | |
| Description | Compressor FX16/2051 SERVICE | |
| Discharge connection size [in] | 1 5/8 in | |
| Discharge connection size [mm] | 42 mm | |
| Discharge connection size type | Standard | |
| Discharge connection type | Soldering | |
| Elevated base plate | Yes | |
| Family | F Compressors | |
| Flywheel | No | |
| Frequency Hz | w/o motor | |
| In scope of WEEE | No | |
| Legacy BOCK ID | 11712 | |
| Max pressure (PS) - high side | 28 bar | |
| Max pressure (PS) - low side | 19 bar | |
| Model number | FX16/2051 | |
| Mounting position capacity regulator | Serial position | |
| Oil differential pressure sensor | No | |
| Oil pressure safety switch | No | |
| Oil service valve | No | |
| Oil sump heater | No | |
| Oil type | BOCKlub E55 | |
| Refrigerants | R404A; R407C; R134a | |
| Suction connection size [in] | 2 1/8 in | |
| Suction connection size [mm] | 54 mm | |
| Suction connection size type | Standard | |
| Suction connection type | Soldering | |
| Technology | Open Type Compressor | |
| Thermal protection thermostat | No | |
| Type designation | FX16/2051 |
Technical data
| Product type | Open type compressors | |
| Net weight | 181.294 kg | |
| Gross weight | 195.894 kg | |
| Packed volume | 448.4 L | |
| EAN | 5715162658642 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 097C1446 are available on request. Ask for documents →
