097C1499

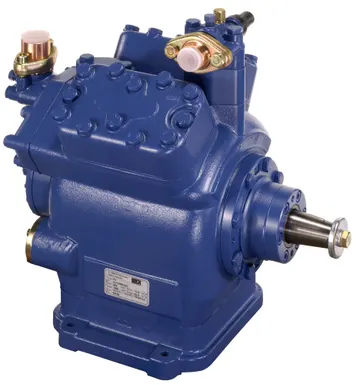

Danfoss 097C1499 - BOCK, FX4, Open Type Compressor
- Refrigerants: R404A; R407C; R134a
- Compressor power supply [V]: w/o motor
- Oil type: BOCKlub E55
- Legacy BOCK ID: 12086
Type:
FX4
FX4
Product details
| Type | FX4 | |
| Product group | Open type compressors | |
| Product Name Description | Reciprocating compressor F | |
| Approval standard | No | |
| Brand | BOCK | |
| Capacity regulator | No | |
| Clutch type | No | |
| Colour | Blue (standard) | |
| Compressor power supply [V] | w/o motor | |
| Contains batteries | No | |
| Cylinder | 4 | |
| Description | Compressor FX4 | |
| Discharge connection size [in] | 1 1/8 in | |
| Discharge connection size [mm] | 28 mm | |
| Discharge connection size type | Standard | |
| Discharge connection type | Soldering | |
| Family | F Compressors | |
| Flywheel | Yes | |
| Frequency Hz | w/o motor | |
| In scope of WEEE | No | |
| Legacy BOCK ID | 12086 | |
| Max pressure (PS) - high side | 28 bar | |
| Max pressure (PS) - low side | 19 bar | |
| Model number | FX4 | |
| Oil pressure safety switch | No | |
| Oil sump heater | 220-240V AC | |
| Oil type | BOCKlub E55 | |
| Refrigerants | R404A; R407C; R134a | |
| Start Unloader | 220-240V AC incl. thermal protection thermostat (PTC) | |
| Suction connection size [in] | 1 3/8 in | |
| Suction connection size [mm] | 35 mm | |
| Suction connection size type | Standard | |
| Suction connection type | Soldering | |
| Technology | Open Type Compressor | |
| Thermal protection thermostat | 1 | |
| Type designation | FX4 |
Technical data
| Product type | Open type compressors | |
| Net weight | 56.777 kg | |
| Gross weight | 65.777 kg | |
| Packed volume | 180.2 L | |
| EAN | 5715162658116 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 097C1499 are available on request. Ask for documents →
