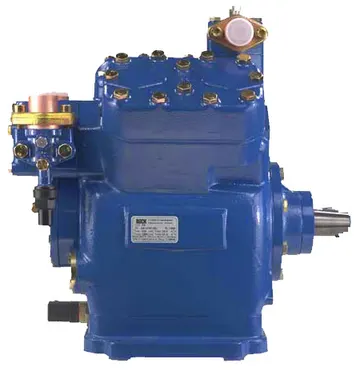

Danfoss 097C1532 - BOCK, FX5, Open Type Compressor

Type:
FX5

Product details

Type		FX5
Product group		Open type compressors
Product Name Description		Reciprocating compressor F
Approval standard		No
Brand		BOCK
Capacity regulator		1x 230V AC,50Hz
Clutch type		No
Colour		Blue (standard)
Compressor power supply [V]		w/o motor
Contains batteries		No
Cylinder		4
Description		Compressor FX5
Discharge connection size [in]		1 1/8 in
Discharge connection size [mm]		28 mm
Discharge connection size type		Standard
Discharge connection type		Soldering
Family		F Compressors
Flywheel		No
Frequency Hz		w/o motor
In scope of WEEE		No
Legacy BOCK ID		12087
Max pressure (PS) - high side		28 bar
Max pressure (PS) - low side		19 bar
Model number		FX5
Mounting position capacity regulator		Serial position
Oil pressure safety switch		No
Oil sump heater		No
Oil type		BOCKlub E55
Refrigerants		R404A; R407C; R134a
Start Unloader		No
Suction connection comments		2 connections
Suction connection size [in]		1 3/8 in
Suction connection size [mm]		35 mm
Suction connection size type		Standard
Suction connection type		Soldering
Technology		Open Type Compressor
Thermal protection thermostat		No
Type designation		FX5

Operating guides, design guides, certificates and CAD drawings for 097C1532 are available on request. Ask for documents →
