132U8012

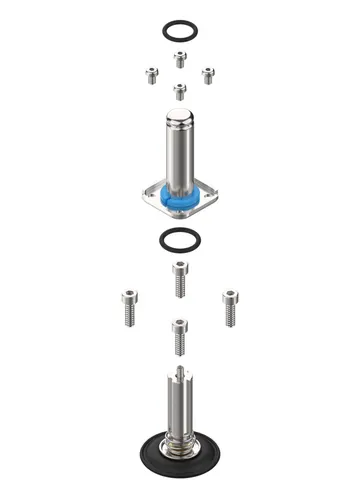

Danfoss 132U8012 - Spare part, EV250BW 10/12BE NC, Diaphragm, actuator set
- Product Type: Spare part
- Used for product: EV250BW 10/12BE NC
- Type designation: Diaphragm, actuator set, Service kit
- Function: NC
Type:
Diaphragm, actuator set, Service kit
Diaphragm, actuator set, Service kit
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | Spare part | |
| Product group | Solenoid valves spare parts | |
| Product Name Description | Service kit | |
| China RoHS compliance | Out of scope | |
| Contains batteries | No | |
| Description | Spare part EV250BW 10/12BE NC | |
| EU RoHS compliance | Out of scope | |
| Function | NC | |
| Media recommendations | Drinking Water&Heating ECO/SS | |
| Packing format | Multi pack | |
| Parts included | Armature assembly EV250BW NC; Armature tube assembly; Cap 13,9 14 Red; Compession spring; Diaphragm assembly; O-ring for armature tube; O-ring for coil; Screw M4 x 6 Torx T15; Screw M5.0 x 16.0 CS; Tension spring EV250B | |
| Quantity per packing format | 20 pc | |
| Seal Material | EPDM | |
| Type designation | Diaphragm, actuator set, Service kit | |
| Used for product | EV250BW 10/12BE NC | |
| Product Type | Spare part |
Technical data
| Product type | Solenoid valves spare parts | |
| Net weight | 0.063 kg | |
| Gross weight | 0.13 kg | |
| Packed volume | 0.3 L | |
| EAN | 5715162293027 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 132U8012 are available on request. Ask for documents →
