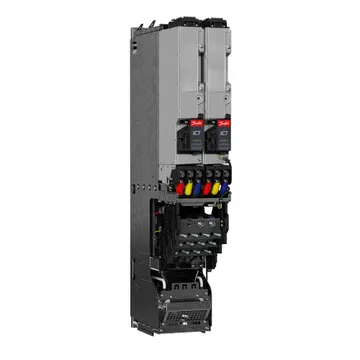

Danfoss 137G8775 - iC7-Marine System Modules (6000 kW, IP00, 525-690V)
- iC7-Marine
- System module, liquid-cooled
- IP00/Open Type, Frame:8xIM12L
- Inverter module, INU, 525-690 V AC / 640-1100 V DC,6400 A
- EMC category: C4 category
- None
- Standard I/O: None
- Modbus TCP OS7MT
- Functional Safety: None, not upgradable
Model code:
IC7-60SLIN07-6400E00F4+ANNC+AONH+BAMT+BEXX+DAMA+EGIN+EHEN
IC7-60SLIN07-6400E00F4+ANNC+AONH+BAMT+BEXX+DAMA+EGIN+EHEN
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
Product details
| Product series | +DAMA | iC7-Marine |
| Product group | IC7-60 | iC7-60 |
| Product category | SL | System module, liquid-cooled |
| Product type | IN | Inverter module, INU |
| Mains voltage | 07 | 525-690 V AC / 640-1100 V DC |
| Current rating | -6400 | 6400 A |
| Power rating | 6M0 | 6.0 MW |
| Protection rating | E00 | IP00/Open Type |
| EMC category | F4 | C4 category |
| Integration unit | +AEXX | None |
| Mains input device | +AJXX | None |
| DC fuses and devices | +AKXX | None |
| Cooling circuit connector type | +ANNC | Threaded connection, G 1/2" |
| Cooling circuit hose length | +AONH | None |
| Marine construction | +AFXX | None |
| Extra environmental protection | +AGCX | Coated boards |
| Communication interface, X1/X2 | +BAMT | Modbus TCP OS7MT |
| Communication interface, X0 | +BBEL | Ethernet port, no protocol |
| Standard I/O | +BDXX | None |
| Functional safety | +BEXX | None, not upgradable |
| Control panel | +BFXX | None |
| Control panel mounting type | +BGXX | None |
| Control panel cable length | +BHXX | None |
| Control unit cable length | +BKXX | None |
| StarCoupler board cable length | +BLXX | None |
| Option slot A | +CAXX | None, without mounting p |
| Option slot B | +CBXX | None, without mounting plate |
| Option slot C | +CCXX | None, without mounting plate |
| Option slot D | +CDXX | None, without mounting plate |
| Option slot E | +CEXX | None, without mounting plate |
| Option slot F | +CFXX | None, without mounting plate |
| Option slot G | +CGXX | None, without mounting plate |
| Option slot H | +CHXX | None, without mounting plate |
| Option slot I | +CIXX | None, without mounting plate |
| Option slot J | +CJXX | None, without mounting plate |
| Language package | +EL01 | Global |
| Customer specific application | +DBXX | None |
| Additional drive features 1 | +DD1X | None |
| Additional drive features 2 | +DE2X | None |
| Additional drive features 3 | +DF3X | None |
| Additional drive features 4 | +DG4X | None |
| Additional drive features 5 | +DH5X | None |
| High speed enabled | +DI6X | No |
| Customization file package ID | +EAXXXXXX | No customization |
| Product software ID | +ECXXX | Latest released version |
| Technical documentation | +EGIN | Installation guide |
| Documentation language | +EHEN | English |
| Customer-specific label | +EJXX | None |
| Shipping package | +TACB | Cardboard box package |
| Product specific marine cert. | +VBXX | None |
| Frame designation | 8XIM12L | 8xIM12L |
| Main unit Width | 8X235MM/9.3IN | |
| Main unit Height | 710MM/28IN | |
| Main unit Depth | 558MM/22IN | |
| AC voltage | 3X0-575/600/690VAC | |
| Continous current IH (1/5min) | 4800A | |
| Continous current IL (1/5min) | 6400A | |
| Cooling type | Liquid Cooled | |
| DC Bus current | 7057A(932VDC) | |
| DC Bus voltage | 640-1100VDC | |
| DC power | 6573KW(932VDC) | |
| Enclosure rating | IP00 / OPEN TYPE | |
| Liquid temp. High Overload | 45°C/113°F | |
| Liquid temp. Low Overload | 45°C/113°F | |
| Liquid temp. Nominal load | 45°C/113°F | |
| Nominal AC current | 6534A | |
| Output frequency | 0-599Hz | |
| Overload current IH (1/5min) | 7200A | |
| Overload current IL (1/5min) | 7040A | |
| Short circuit current rating | 100kA | |
| Start current Imax (3sec) | 9600A | |
| Storage temperature | -40...70°C/-40...158°F | |
| Typical motor power PH2 (150%) | 4600KW(690VAC)/5000HP(575VAC) | |
| Typical motor power PL (110%) | 6000KW(690VAC)/6700HP(575VAC) |
Technical data
| Motor power | 6000 kW | |
| Mains voltage | 525-690 V AC / 640-1100 V DC | |
| Protection rating | IP00/Open Type | |
| Frame size | 8xIM12L | |
| RFI filter | None (EMC C4) | |
| Control panel | None | |
| PCB coating | Coated PCB | |
| Mains option | None | |
| Fieldbus | Modbus TCP OS7MT | |
| Product type | System module, liquid-cooled (Inverter module, INU) | |
| Continuous output current | 6400 A | |
| Intermittent output current | 7040 A | |
| Continuous current (high overload) | 4800 A | |
| Rated current | 6400 A | |
| Output frequency | 0-599Hz | |
| Short-circuit rating | 100kA | |
| Standard I/O | None | |
| Height | 710 mm | |
| Depth | 558 mm | |
| Net weight | 680 kg | |
| Gross weight | 872 kg | |
| EAN | 5715253351322 | |
| ECCN (EU) | Y901 | |
| ECCN (US) | 3A999.a | |
