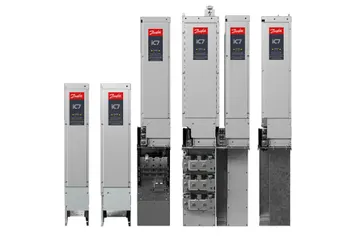

Danfoss 137N3260 - iC7-Automation System Modules (1210 A, IP00, 380-500V)
- iC7-Automation
- System module, air-cooled
- IP00/Open Type, Frame:2xAM11
- 3~, regenerative, AFE, 380-500 V AC,1210 A
- EMC category: C3 category
- Control Panel 2.8 OPX20
- Standard I/O: None, without mounting plate
- Ethernet port, no protocol
- Functional Safety: None, not upgradable
Model code:
IC7-60SA3A05-1210E00F3+BD00+BEXX+BF20+DAAU+EGIN+EHEN
IC7-60SA3A05-1210E00F3+BD00+BEXX+BF20+DAAU+EGIN+EHEN
Product details
| Product series | +DAAU | iC7-Automation |
| Product group | IC7-60 | iC7-60 |
| Product category | SA | System module, air-cooled |
| Product type | 3A | 3~, regenerative, AFE |
| Mains voltage | 05 | 380-500 V AC |
| Current rating | -1210 | 1210 A |
| Power rating | XXX | Not relevant |
| Protection rating | E00 | IP00/Open Type |
| EMC category | F3 | C3 category |
| Integration unit | +AEXX | None |
| Mains input device | +AJXX | None |
| DC fuses and devices | +AKXX | None |
| Communication interface, X1/X2 | +BAEL | Ethernet port, no protocol |
| Communication interface, X0 | +BBEL | Ethernet port, no protocol |
| Standard I/O | +BD00 | None, without mounting plate |
| Functional safety | +BEXX | None, not upgradable |
| Control panel | +BF20 | Control Panel 2.8 OPX20 |
| Control panel mounting type | +BGXX | None |
| Control panel cable length | +BHXX | None |
| Control unit cable length | +BKXX | None |
| StarCoupler board cable length | +BLXX | None |
| Option slot A | +CAXX | None, without mounting p |
| Option slot B | +CBXX | None, without mounting plate |
| Option slot C | +CCXX | None, without mounting plate |
| Option slot D | +CDXX | None, without mounting plate |
| Option slot E | +CEXX | None, without mounting plate |
| Option slot F | +CFXX | None, without mounting plate |
| Option slot G | +CGXX | None, without mounting plate |
| Option slot H | +CHXX | None, without mounting plate |
| Option slot I | +CIXX | None, without mounting plate |
| Option slot J | +CJXX | None, without mounting plate |
| Language package | +EL01 | Global |
| Customer specific application | +DBXX | None |
| Additional drive features 1 | +DD1X | None |
| Additional drive features 2 | +DE2X | None |
| Additional drive features 3 | +DF3X | None |
| Additional drive features 4 | +DG4X | None |
| Additional drive features 5 | +DH5X | None |
| High speed enabled | +DI6X | No |
| Customization file package ID | +EAXXXXXX | No customization |
| Product software ID | +ECXXX | Latest released version |
| Technical documentation | +EGIN | Installation guide |
| Documentation language | +EHEN | English |
| Customer-specific label | +EJXX | None |
| Shipping package | +TACB | Cardboard box package |
| Product specific marine cert. | +VBXX | None |
| Frame designation | 2XAM11 | 2xAM11 |
| Main unit Width | 2X210MM/8.3IN | |
| Main unit Height | 990MM/39IN | |
| Main unit Depth | 502MM/19.8IN | |
| AC voltage | 3X380-500VAC | |
| Apparent power | /918KVA(480VAC) | |
| Apparent power | 857KVA(400VAC) | |
| Cooling circuit connector type | +ANXX | Not relevant |
| Cooling circuit hose length | +AOXX | Not relevant |
| Cooling type | Air Cooled | |
| DC Bus current | 1413A(594VDC) | |
| DC Bus voltage | 465-740VDC | |
| DC power | 839KW(594VDC) | |
| Enclosure rating | IP00 / OPEN TYPE | |
| Extra environmental protection | +AGCX | Coated boards |
| Input frequency | 50/60Hz | |
| Marine construction | +AFXX | None |
| Nominal AC current | 1236A(400VAC)/1103A(480VAC) | |
| Short circuit current rating | 100kA | |
| Storage temperature | -40...70°C/-40...158°F |
Technical data
| Mains voltage | 380-500 V AC | |
| Phase | Three-phase | |
| Protection rating | IP00/Open Type | |
| Frame size | 2xAM11 | |
| RFI filter | Class A2 (EMC C3) | |
| Control panel | Control Panel 2.8 (OPX20) | |
| PCB coating | Coated PCB | |
| Mains option | None | |
| Fieldbus | Ethernet port, no protocol | |
| Product type | System module, air-cooled | |
| Continuous output current | 1236 A | |
| Rated current | 1210 A | |
| Apparent power | 918 kVA | |
| Input frequency | 50/60Hz | |
| Short-circuit rating | 100kA | |
| Standard I/O | None, without mounting plate | |
| Height | 990 mm | |
| Depth | 502 mm | |
| Net weight | 150 kg | |
| Gross weight | 180 kg | |
| EAN | 5715253610757 | |
| ECCN (EU) | Y901 | |
| ECCN (US) | 3A999.a | |
