180L0047

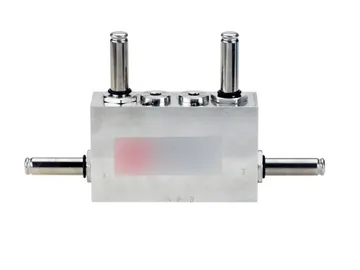

Danfoss 180L0047 - Solenoid operated valves, VDH 30 EC, Hydraulic
- Flow [gpm] [Max]: 7.9
- Flow [l/min] [Max]: 30
- Operating pressure [barg] [Max]: 140
- Operating pressure [psig] [Max]: 2030
- Connection standard: Cetop 3
Type:
VDH 30 EC
VDH 30 EC
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | VDH 3/2, 4/3 | |
| Product group | Valve | |
| Application | Hydraulic | |
| Body material | AISI 316 | |
| China RoHS compliance | Out of scope | |
| Closing Time [ms] [Max] | 130 ms | |
| Connection standard | Cetop 3 | |
| Contains batteries | No | |
| Description | VDH30 EC 4/3 CETOP 3 AISI 316 STAINLESS | |
| Direction | Manifold | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Flow [gpm] [Max] | 7.9 | |
| Flow [gpm] [Min] | 0.2 gal/min | |
| Flow [l/min] [Max] | 30 | |
| Flow [l/min] [Min] | 1 l/min | |
| Function | NC | |
| In scope of WEEE | No | |
| Inlet size [in] | CETOP 3 | |
| Media temperature [°C] [Max] | 50 °C | |
| Media temperature [°C] [Min] | 3 °C | |
| Media temperature [°F] [Max] | 122 °F | |
| Media temperature [°F] [Min] | 37 °F | |
| Number of ways | 4/3 | |
| Opening time [ms] [Max] | 110 ms | |
| Operating pressure [barg] [Max] | 140 | |
| Operating pressure [psig] [Max] | 2030 | |
| Product description | Solenoid operated valves | |
| REACH Candidate List substances | No | |
| Type designation | VDH 30 EC |
Technical data
| Product type | Valve | |
| Net weight | 3.8 kg | |
| Gross weight | 4.124 kg | |
| Packed volume | 3.4 L | |
| EAN | 5715162676899 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 180L0047 are available on request. Ask for documents →
