187F2032

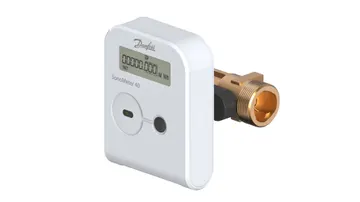

Danfoss 187F2032 - Energy meters, SonoMeter 40, 20 mm
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | SonoMeter 40 | |
| Product group | Energy meters | |
| 1 Primary battery SUM weight Kg | 0.038 | |
| 1 Primary battery weight Kg | 0.019 | |
| Accuracy standard | Class 2 to EN1434 | |
| Ambient class | E2/M1 | |
| Ambient humidity [% RH] [Max] | 93 % | |
| Ambient temperature [°C] [max] | 55 °C | |
| Ambient temperature [°C] [min] | 5 °C | |
| Application | Heating | |
| Approval authority | MID | |
| Approval type | Type approved and 1st time verified | |
| Approved meteorological range [°C] [Max] | 180 °C | |
| Approved meteorological range [°C] [Min] | 0 °C | |
| Battery lifetime [Years] | 15 yr | |
| Battery qty | 2 | |
| Battery type or Name | AA Lithium (ER14505) | |
| Cable insulation material | Halogen free | |
| Cable length between calculator and flow sensor [m] | 1.2 m | |
| China RoHS compliance | Out of scope | |
| Connection size | G 1 | |
| Connection types | Thread | |
| Contains batteries | Yes | |
| Description | Energy meter for commercial applications | |
| Diameter [mm] | 20 mm | |
| Display type | LCD | |
| Dynamic range | 1:100 | |
| EEE category | 5 small equipment (any external dimension < 50 cm) | |
| Energy unit | kWh | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Flow measuring principle | Ultrasonic | |
| In scope of WEEE | Yes | |
| Installation | Return | |
| Integrated communication | Radio 868 MHz OMS | |
| Interface module slot 1 | No interface module | |
| Kvs values [m³/h] | 5.62 m³/h | |
| Log storage duration [Month] | 36 mo | |
| Media | Water quality with pH 7 to 9.5 | |
| Media temperature [°C] [Max] | 130 °C | |
| Media temperature [°C] [Min] | 0 °C | |
| Packing format | Multi pack | |
| Pressure nominal [bar] | 25 bar | |
| qc [m³/h] | 0.005 m³/h | |
| qi [m³/h] | 0.025 m³/h | |
| qp [m³/h] | 2.5 m³/h | |
| qs [m³/h] | 5 m³/h | |
| Quantity per packing format | 32 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| SCIP dossier product name | Sono40 | |
| Storage temperature [°C] [Max] | 35 °C | |
| Storage temperature [°C] [Min] | -25 °C | |
| Supply voltage type | battery 2 x AA-cell | |
| Temperature sensor diameter [mm] | 5.2 mm | |
| Temperature sensors cable length [m] | 1.5 m | |
| Temperature sensors type | Pt 500 | |
| Weight per battery | 19 g |
Technical data
| Product type | Energy meters | |
| Net weight | 1.024 kg | |
| Gross weight | 1.024 kg | |
| Packed volume | 3.1 L | |
| EAN | 5702424605629 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 187F2032 are available on request. Ask for documents →
