VACON 100 sizes and frames: current code, motor power and frame (MR4–MR12)
Every VACON 100 INDUSTRIAL and FLOW size at 208–240 V, 380–500 V and 525–690 V: the current code in the type code, typical motor power and frame size MR4 to MR12.

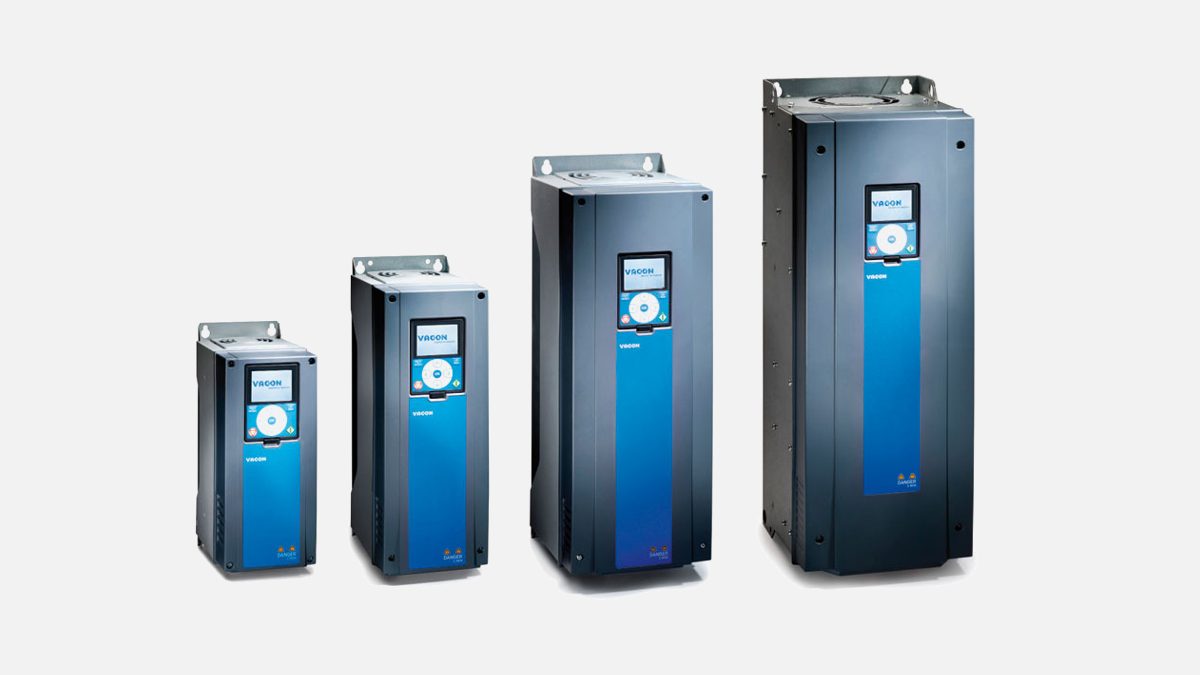

VACON 100 drives are sized by their rated output current, and the current is written in the type code: in VACON0100-3L-0072-5 the 0072 means 72 A and the 5 means a 380–500 V supply. This guide lists every size of VACON 100 INDUSTRIAL and VACON 100 FLOW (they share the same hardware) with its current code, the typical motor power and the frame.
For the options after the “+”, see how to read a VACON type code, or paste a full code into the type code decoder.
380–500 V (voltage code 5)
Typical motor power at 400 V.
| Current code | Rated current | Typical motor | Frame | Enclosures |
|---|---|---|---|---|
| 0003 | 3 A | 1.1 kW | MR4 | IP21, IP54 |
| 0004 | 4 A | 1.5 kW | MR4 | IP21, IP54 |
| 0005 | 5 A | 2.2 kW | MR4 | IP21, IP54 |
| 0008 | 8 A | 3 kW | MR4 | IP21, IP54 |
| 0009 | 9 A | 4 kW | MR4 | IP21, IP54 |
| 0012 | 12 A | 5.5 kW | MR4 | IP21, IP54 |
| 0016 | 16 A | 7.5 kW | MR5 | IP21, IP54 |
| 0023 | 23 A | 11 kW | MR5 | IP21, IP54 |
| 0031 | 31 A | 15 kW | MR5 | IP21, IP54 |
| 0038 | 38 A | 18.5 kW | MR6 | IP21, IP54 |
| 0046 | 46 A | 22 kW | MR6 | IP21, IP54 |
| 0061 | 61 A | 30 kW | MR6 | IP21, IP54 |
| 0072 | 72 A | 37 kW | MR7 | IP21, IP54 |
| 0087 | 87 A | 45 kW | MR7 | IP21, IP54 |
| 0105 | 105 A | 55 kW | MR7 | IP21, IP54 |
| 0140 | 140 A | 75 kW | MR8 | IP00, IP21, IP54 |
| 0170 | 170 A | 90 kW | MR8 | IP00, IP21, IP54 |
| 0205 | 205 A | 110 kW | MR8 | IP00, IP21, IP54 |
| 0261 | 261 A | 132 kW | MR9 | IP00, IP21, IP54 |
| 0310 | 310 A | 160 kW | MR9 | IP00, IP21, IP54 |
| 0385 | 385 A | 200 kW | MR10 | IP00 |
| 0386 | 386 A | 200 kW | MR9B | IP00, IP21 |
| 0460 | 460 A | 250 kW | MR10 | IP00 |
| 0520 | 520 A | 250 kW | MR10 | IP00 |
| 0590 | 590 A | 315 kW | MR10 | IP00 |
| 0650 | 650 A | 355 kW | MR12 | IP00 |
| 0651 | 651 A | 355 kW | MR11 | IP00 |
| 0730 | 730 A | 400 kW | MR12 | IP00 |
| 0731 | 731 A | 400 kW | MR11 | IP00 |
| 0820 | 820 A | 450 kW | MR12 | IP00 |
| 0920 | 920 A | 500 kW | MR12 | IP00 |
| 1040 | 1040 A | 560 kW | MR12 | IP00 |
| 1180 | 1180 A | 630 kW | MR12 | IP00 |
208–240 V (voltage code 2)
Typical motor power at 230 V. Enclosures IP21 and IP54; from 37 kW also IP00.
| Current code | Rated current | Typical motor | Frame |
|---|---|---|---|
| 0003 | 3 A | 0.55 kW | MR4 |
| 0004 | 4 A | 0.75 kW | MR4 |
| 0007 | 7 A | 1.1 kW | MR4 |
| 0008 | 8 A | 1.5 kW | MR4 |
| 0011 | 11 A | 2.2 kW | MR4 |
| 0012 | 12 A | 3 kW | MR4 |
| 0018 | 18 A | 4 kW | MR5 |
| 0024 | 24 A | 5.5 kW | MR5 |
| 0031 | 31 A | 7.5 kW | MR5 |
| 0048 | 48 A | 11 kW | MR6 |
| 0062 | 62 A | 15 kW | MR6 |
| 0075 | 75 A | 18.5 kW | MR7 |
| 0088 | 88 A | 22 kW | MR7 |
| 0105 | 105 A | 30 kW | MR7 |
| 0140 | 140 A | 37 kW | MR8 |
| 0170 | 170 A | 45 kW | MR8 |
| 0205 | 205 A | 55 kW | MR8 |
| 0261 | 261 A | 75 kW | MR9 |
| 0310 | 310 A | 90 kW | MR9 |
525–690 V (voltage code 7)
Typical motor power at 690 V. Enclosures IP21 and IP54 up to 200 kW, IP00 above.
| Current code | Rated current | Typical motor | Frame |
|---|---|---|---|
| 0007 | 7 A | 5.5 kW | MR6 |
| 0010 | 10 A | 7.5 kW | MR6 |
| 0013 | 13 A | 11 kW | MR6 |
| 0018 | 18 A | 15 kW | MR6 |
| 0022 | 22 A | 18.5 kW | MR6 |
| 0027 | 27 A | 22 kW | MR6 |
| 0034 | 34 A | 30 kW | MR6 |
| 0041 | 41 A | 37 kW | MR7 |
| 0052 | 52 A | 45 kW | MR7 |
| 0062 | 62 A | 55 kW | MR7 |
| 0080 | 80 A | 75 kW | MR8 |
| 0100 | 100 A | 90 kW | MR8 |
| 0125 | 125 A | 110 kW | MR8 |
| 0144 | 144 A | 132 kW | MR9 |
| 0170 | 170 A | 160 kW | MR9 |
| 0208 | 208 A | 200 kW | MR9 |
| 0261 | 261 A | 250 kW | MR10 |
| 0262 | 262 A | 250 kW | MR9B |
| 0325 | 325 A | 315 kW | MR10 |
| 0385 | 385 A | 355 kW | MR10 |
| 0416 | 416 A | 400 kW | MR10 |
| 0460 | 460 A | 450 kW | MR12 |
| 0461 | 461 A | 450 kW | MR11 |
| 0520 | 520 A | 500 kW | MR12 |
| 0521 | 521 A | 500 kW | MR11 |
| 0590 | 590 A | 560 kW | MR12 |
| 0650 | 650 A | 630 kW | MR12 |
| 0750 | 750 A | 710 kW | MR12 |
| 0820 | 820 A | 800 kW | MR12 |
Notes on the frames
- MR4 to MR9 are wall-mounted drives in IP21 or IP54; MR8 and MR9 also come as IP00 modules for cabinets.
- MR10 to MR12 are IP00 drive modules for building into a cabinet. For a complete cabinet with mains switch and fuses, see the VACON 100 enclosed drives.
- Where two current codes give the same power (for example 0650 and 0651), they are different frames – MR12 or the more compact MR11. Check which one fits your cabinet.
- The kW is a guide. The motor nameplate current must not be above the drive’s rated current, and heavy-duty machines may need the next size up.
What we need for a quote
Send the full type code from the nameplate – the options after the “+” (fieldbus, I/O, brake chopper, EMC class) are part of the exact part. If you only have the motor data, send power, voltage, current and the application.
